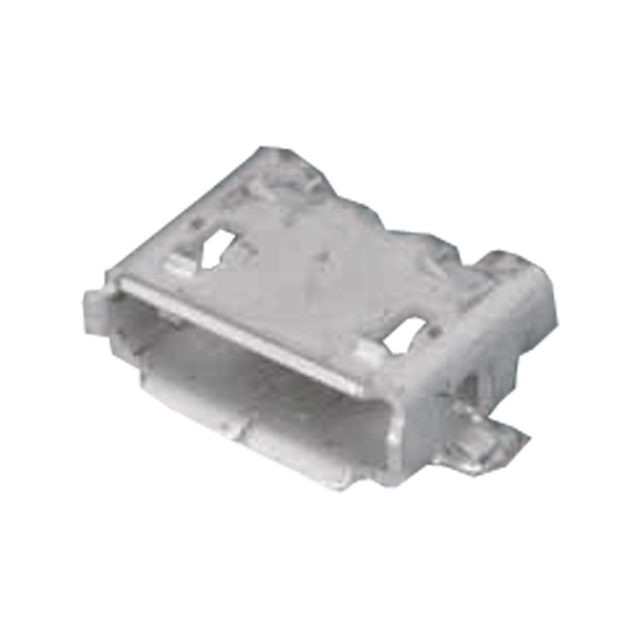

ZX62D-AB-5P8(30)
ActiveHirose Electric USA, Inc.
CONN RCPT USB2.0 MICRO AB SMD RA
Deep-Dive with AI
Search across all available documentation for this part.
ZX62D-AB-5P8(30)
ActiveHirose Electric USA, Inc.
CONN RCPT USB2.0 MICRO AB SMD RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZX62D-AB-5P8(30) |
|---|---|
| Connector Type | USB - micro AB |
| Contact Finish | Gold |
| Current Rating (Amps) | 1 A |
| Features | Pick and Place, Solder Retention |
| Gender | Receptacle |
| Insulation Color | Gray |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.00 | |
| 10 | $ 0.84 | |||
| 25 | $ 0.81 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.76 | |||
| 250 | $ 0.69 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.55 | |||
| Digi-Reel® | 1 | $ 1.00 | ||
| 10 | $ 0.84 | |||
| 25 | $ 0.81 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.76 | |||
| 250 | $ 0.69 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.55 | |||
| Tape & Reel (TR) | 2000 | $ 0.52 | ||
| 4000 | $ 0.48 | |||
| 6000 | $ 0.47 | |||
| 10000 | $ 0.44 | |||
| 14000 | $ 0.43 | |||
| 20000 | $ 0.42 | |||
Description
General part information
ZX62 Series
USB - micro AB USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle; Through Hole
