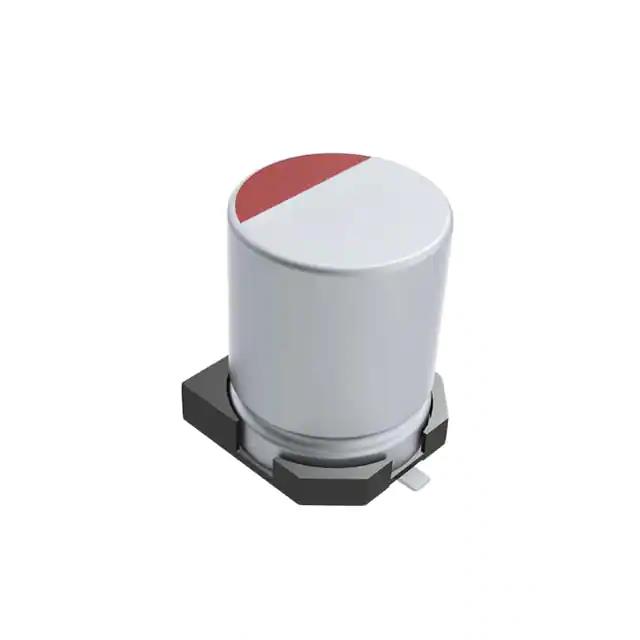

A780MS566M1JLAS030 - A780MS566M1JLAS030

A780MS566M1JLAS030

Active
KEMET

CAP, 56UF, 63V, ALU ELEC, HYBRID, SMD ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_A4098_A780.pdfA780MS566M1JLAS030 Spec+3
A780MS566M1JLAS030 - A780MS566M1JLAS030

A780MS566M1JLAS030

Active
KEMET

CAP, 56UF, 63V, ALU ELEC, HYBRID, SMD ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsKEM_A4098_A780.pdfA780MS566M1JLAS030 Spec+3

Technical Specifications

Parameters and characteristics for this part

SpecificationA780MS566M1JLAS030
ApplicationsAutomotive
Capacitance56 µF
ESR (Equivalent Series Resistance)30 mOhms
Height - Seated (Max) [Max] [z]12.7 mm
Height - Seated (Max) [Max] [z]0.5 in
Lifetime @ Temp.4000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / CaseRadial, Can - SMD
RatingsAEC-Q200
Ripple Current @ High Frequency1.8 A
Ripple Current @ Low Frequency396 mA
Size / Dimension [diameter]10 mm
Size / Dimension [diameter]0.394 in
Surface Mount Land Size [x]0.406 in
Surface Mount Land Size [x]10.3 mm
Surface Mount Land Size [y]10.3 mm
Surface Mount Land Size [y]0.406 "
Tolerance20 %
TypeHybrid
Voltage - Rated63 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.29
10$ 0.97
50$ 0.88
100$ 0.72
Digi-Reel® 1$ 1.29
10$ 0.97
50$ 0.88
100$ 0.72
Tape & Reel (TR) 400$ 0.68
800$ 0.54
1200$ 0.51
2000$ 0.48
4000$ 0.46
10000$ 0.44
20000$ 0.43
NewarkEach (Supplied on Cut Tape) 10$ 1.19
25$ 1.06
50$ 0.94
100$ 0.74
250$ 0.72
500$ 0.70

Description

General part information

A780MS Series

56 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 4000 Hrs @ 125°C
