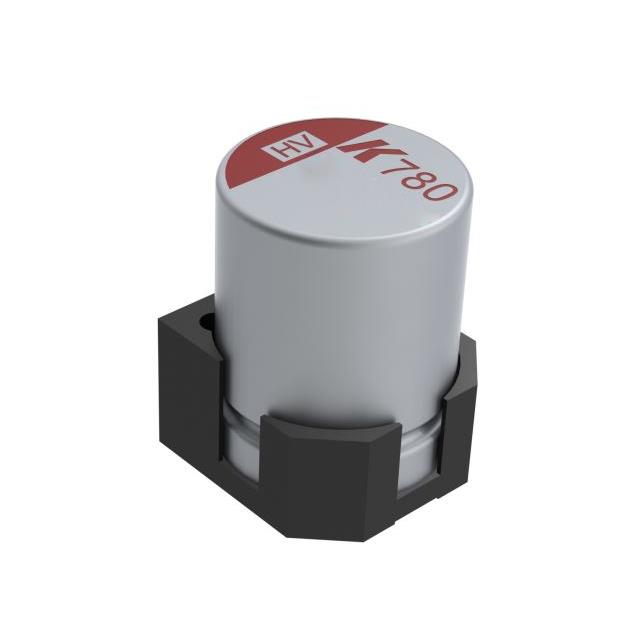

A780MS566M1JLAV030 - A780MS107M1JLAV030

A780MS566M1JLAV030

Active
KEMET

CAP ALUM HYBRID 100UF 20% 50V SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA780MS566M1JLAV030 SpecDatasheet+1
A780MS566M1JLAV030 - A780MS107M1JLAV030

A780MS566M1JLAV030

Active
KEMET

CAP ALUM HYBRID 100UF 20% 50V SM

Deep-Dive with AI

DocumentsA780MS566M1JLAV030 SpecDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationA780MS566M1JLAV030
ApplicationsAutomotive
Capacitance56 µF
ESR (Equivalent Series Resistance)30 mOhms
FeaturesAnti-Vibration
Height - Seated (Max) [Max] [z]13.2 mm
Height - Seated (Max) [Max] [z]0.52 "
Lifetime @ Temp.4000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / CaseRadial, Can - SMD
RatingsAEC-Q200
Ripple Current @ High Frequency1.8 A
Ripple Current @ Low Frequency396 mA
Size / Dimension [diameter]10 mm
Size / Dimension [diameter]0.394 in
Surface Mount Land Size [x]0.425 "
Surface Mount Land Size [x]10.8 mm
Surface Mount Land Size [y]10.3 mm
Surface Mount Land Size [y]0.406 "
Tolerance20 %
TypeHybrid
Voltage - Rated63 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.31
10$ 1.77
50$ 1.63
100$ 1.35
Digi-Reel® 1$ 2.31
10$ 1.77
50$ 1.63
100$ 1.35
Tape & Reel (TR) 400$ 1.22
800$ 1.02
1200$ 0.95
2000$ 0.92
4000$ 0.88
10000$ 0.87

Description

General part information

A780MS Series

56 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 4000 Hrs @ 125°C
