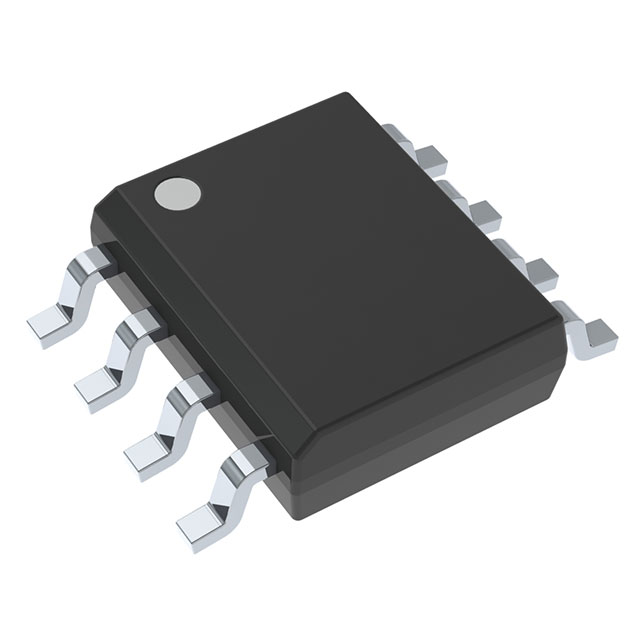

LM2675M-5.0

Texas Instruments

IC REG BUCK 5V 1A 8SOIC

Deep-Dive with AI

Search across all available documentation for this part.

LM2675M-5.0

Texas Instruments

IC REG BUCK 5V 1A 8SOIC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LM2675M-5.0

Current - Output	1 A
Frequency - Switching	260 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Supplier Device Package	8-SOIC
Synchronous Rectifier	False
Topology	Buck
Voltage - Input (Min) [Min]	6.5 V
Voltage - Output (Min/Fixed)	5 V

LM2675 Series

SIMPLE SWITCHER® 6.5V to 40V, 1A Low Component Count Step-Down Regulator

Part	Package / Case	Package / Case	Package / Case	Frequency - Switching	Current - Output	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Output (Min/Fixed)	Number of Outputs	Topology	Supplier Device Package	Function	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Output Configuration	Output Type	Voltage - Output (Max)	Package / Case [y]	Package / Case [x]	Utilized IC / Part	Supplied Contents	Outputs and Type	Outputs and Type	Regulator Topology	Main Purpose	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output
Texas Instruments LM2675N-12	0.3 in	8-DIP	7.62 mm	260 kHz	1 A	6.5 V	Through Hole	12 V	1	Buck	8-PDIP	Step-Down	-40 °C	125 ¯C	1.81 mOhm	Positive
Texas Instruments LM2675LDX-ADJ/NOPB		16-WFDFN Exposed Pad		260 kHz	1 A	6.5 V	Surface Mount	1.21 V	1	Buck	16-WSON (5x5)	Step-Down	-40 °C	125 ¯C		Positive	Adjustable	37 V
Texas Instruments LM2675MX-3.3/NOPB		8-SOIC		260 kHz	1 A	6.5 V	Surface Mount	3.3 V	1	Buck	8-SOIC	Step-Down	-40 °C	125 ¯C	1.81 mOhm	Positive			3.9 mm	0.154 in
Texas Instruments LM2675LD-5.0/NOPB		16-WFDFN Exposed Pad		260 kHz	1 A	6.5 V	Surface Mount	5 V	1	Buck	16-WSON (5x5)	Step-Down	-40 °C	125 ¯C	1.81 mOhm	Positive
Texas Instruments LM2675LD-5.0		16-WFDFN Exposed Pad		260 kHz	1 A	6.5 V	Surface Mount	5 V	1	Buck	16-WSON (5x5)	Step-Down	-40 °C	125 ¯C	1.81 mOhm	Positive
Texas Instruments LM2675MX-5.0/NOPB		8-SOIC		260 kHz	1 A	6.5 V	Surface Mount	5 V	1	Buck	8-SOIC	Step-Down	-40 °C	125 ¯C	1.81 mOhm	Positive			3.9 mm	0.154 in
Texas Instruments LM2675M-12/NOPB		8-SOIC		260 kHz	1 A	6.5 V	Surface Mount	12 V	1	Buck	8-SOIC	Step-Down	-40 °C	125 ¯C	1.81 mOhm	Positive			3.9 mm	0.154 in
Texas Instruments LM2675-5.0EVAL				260 kHz	1 A																LM2675	Board(s)	Non-Isolated	1	Buck	DC/DC Step Down	Fully Populated	40 V	8 V	5 V
Texas Instruments LM2675M-5.0		8-SOIC		260 kHz	1 A	6.5 V	Surface Mount	5 V	1	Buck	8-SOIC	Step-Down	-40 °C	125 ¯C	1.81 mOhm	Positive			3.9 mm	0.154 in
Texas Instruments LM2675M-ADJ/NOPB		8-SOIC		260 kHz	1 A	6.5 V	Surface Mount	1.21 V	1	Buck	8-SOIC	Step-Down	-40 °C	125 ¯C		Positive	Adjustable	37 V	3.9 mm	0.154 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	190	$ 5.22

Description

General part information

LM2675 Series

The LM2675 series of regulators are monolithic integrated DC-DC converter circuits built with a LMDMOS process. These regulators provide all the active functions for a step-down (buck) switching regulator, capable of driving a 1-A load current with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.

Requiring a minimum number of external components, these regulators are simple to use and include patented internal frequency compensation and a fixed frequency oscillator.

The LM2675 series operates at a switching frequency of 260 kHz, thus allowing smaller-sized filter components than what would be needed with lower frequency switching regulators. Because of its very high efficiency (>90%), the copper traces on the printed-circuit board are the only heat sinking needed.
