LM2675LD-5.0/NOPB
ActiveSIMPLE SWITCHER® 6.5V TO 40V, 1A LOW COMPONENT COUNT STEP-DOWN REGULATOR
Deep-Dive with AI
Search across all available documentation for this part.
LM2675LD-5.0/NOPB
ActiveSIMPLE SWITCHER® 6.5V TO 40V, 1A LOW COMPONENT COUNT STEP-DOWN REGULATOR
Technical Specifications
Parameters and characteristics for this part
| Specification | LM2675LD-5.0/NOPB |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 260 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |

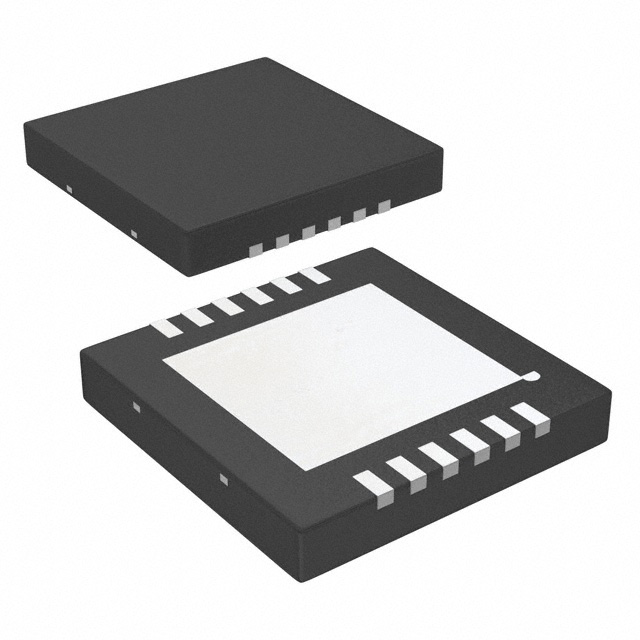

| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-WSON (5x5) |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Min) [Min] | 6.5 V |
| Voltage - Output (Min/Fixed) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.71 | |
| 10 | $ 4.23 | |||
| 25 | $ 4.00 | |||
| 100 | $ 3.47 | |||
| 250 | $ 3.29 | |||
| 500 | $ 2.95 | |||
| Digi-Reel® | 1 | $ 4.71 | ||
| 10 | $ 4.23 | |||
| 25 | $ 4.00 | |||
| 100 | $ 3.47 | |||
| 250 | $ 3.29 | |||
| 500 | $ 2.95 | |||
| Tape & Reel (TR) | 1000 | $ 2.39 | ||
| 2000 | $ 2.27 | |||
| 3000 | $ 2.21 | |||
| Texas Instruments | SMALL T&R | 1 | $ 3.56 | |
| 100 | $ 3.12 | |||
| 250 | $ 2.18 | |||
| 1000 | $ 1.76 | |||
Description
General part information
LM2675 Series
The LM2675 series of regulators are monolithic integrated DC-DC converter circuits built with a LMDMOS process. These regulators provide all the active functions for a step-down (buck) switching regulator, capable of driving a 1-A load current with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include patented internal frequency compensation and a fixed frequency oscillator.
The LM2675 series operates at a switching frequency of 260 kHz, thus allowing smaller-sized filter components than what would be needed with lower frequency switching regulators. Because of its very high efficiency (>90%), the copper traces on the printed-circuit board are the only heat sinking needed.
