TF38-16S-0.5SV(830)

Active

Hirose Electric USA, Inc.

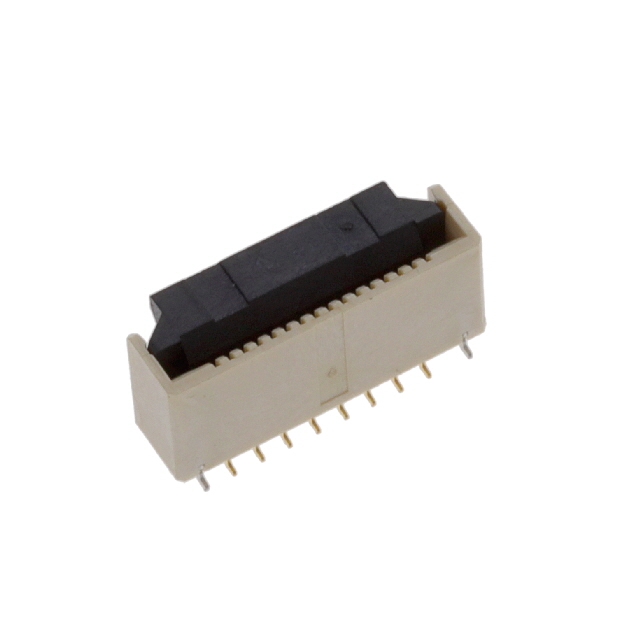

CONN FFC VERT 16POS 0.5MM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TF38-16S-0.5SV(830)

Active

Hirose Electric USA, Inc.

CONN FFC VERT 16POS 0.5MM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TF38-16S-0.5SV(830)

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tabbed
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Gold
Contact Finish Thickness	1.25 Áin
Contact Finish Thickness	0.03 Ám
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.205 in
Height Above Board	5.2 mm
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

TF38 Series

Part	Contact Finish	Mounting Type	Cable End Type	Contact Material	Voltage Rating	Material Flammability Rating	Actuator Color	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Connector/Contact Type	Locking Feature	FFC, FCB Thickness	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mating Cycles	Number of Positions	Height Above Board	Height Above Board	Housing Material	Termination	Current Rating (Amps)	Flat Flex Type	Housing Color	Number of Positions
Hirose Electric USA, Inc. TF38-20S-0.5SV(830)	Gold	Surface Mount	Tabbed	Phosphor Bronze	50 V	UL94 V-0	Black	85 °C	-40 °C	Liquid Crystal Polymer (LCP)	Contacts Vertical - 1 Sided	Flip Lock	0.3 mm	1.25 Áin	0.03 Ám	0.5 mm	0.02 in	20	20	0.205 in	5.2 mm	Liquid Crystal Polymer (LCP)	Solder	0.5 A	FFC FPC	Beige
Hirose Electric USA, Inc. TF38-32S-0.5SV(830)	Gold	Surface Mount	Tabbed	Phosphor Bronze	50 V	UL94 V-0	Black	85 °C	-40 °C	Liquid Crystal Polymer (LCP)	Contacts Vertical - 1 Sided	Flip Lock	0.3 mm	1.25 Áin	0.03 Ám	0.5 mm	0.02 in	20		0.205 in	5.2 mm	Liquid Crystal Polymer (LCP)	Solder	0.5 A	FFC FPC	Beige
Hirose Electric USA, Inc. TF38-22S-0.5SV(830)	Gold	Surface Mount	Tabbed	Phosphor Bronze	50 V	UL94 V-0	Black	85 °C	-40 °C	Liquid Crystal Polymer (LCP)	Contacts Vertical - 1 Sided	Flip Lock	0.3 mm	1.25 Áin	0.03 Ám	0.5 mm	0.02 in	20	22 positions	0.205 in	5.2 mm	Liquid Crystal Polymer (LCP)	Solder	0.5 A	FFC FPC	Beige
Hirose Electric USA, Inc. TF38-38S-0.5SV(830)	Gold	Surface Mount	Tabbed	Phosphor Bronze	50 V	UL94 V-0	Black	85 °C	-40 °C	Liquid Crystal Polymer (LCP)	Contacts Vertical - 1 Sided	Flip Lock	0.3 mm	1.25 Áin	0.03 Ám	0.5 mm	0.02 in	20	38	0.205 in	5.2 mm	Liquid Crystal Polymer (LCP)	Solder	0.5 A	FFC FPC	Beige
Hirose Electric USA, Inc. TF38-30S-0.5SV(830)	Gold	Surface Mount	Tabbed	Phosphor Bronze	50 V	UL94 V-0	Black	85 °C	-40 °C	Liquid Crystal Polymer (LCP)	Contacts Vertical - 1 Sided	Flip Lock	0.3 mm	1.25 Áin	0.03 Ám	0.5 mm	0.02 in	20	30	0.205 in	5.2 mm	Liquid Crystal Polymer (LCP)	Solder	0.5 A	FFC FPC	Beige
Hirose Electric USA, Inc. TF38-16S-0.5SV(830)	Gold	Surface Mount	Tabbed	Phosphor Bronze	50 V	UL94 V-0	Black	85 °C	-40 °C	Liquid Crystal Polymer (LCP)	Contacts Vertical - 1 Sided	Flip Lock	0.3 mm	1.25 Áin	0.03 Ám	0.5 mm	0.02 in	20		0.205 in	5.2 mm	Liquid Crystal Polymer (LCP)	Solder	0.5 A	FFC FPC	Beige	16
Hirose Electric USA, Inc. TF38-36S-0.5SV(830)	Gold	Surface Mount	Tabbed	Phosphor Bronze	50 V	UL94 V-0	Black	85 °C	-40 °C	Liquid Crystal Polymer (LCP)	Contacts Vertical - 1 Sided	Flip Lock	0.3 mm	1.25 Áin	0.03 Ám	0.5 mm	0.02 in	20	36	0.205 in	5.2 mm	Liquid Crystal Polymer (LCP)	Solder	0.5 A	FFC FPC	Beige
Hirose Electric USA, Inc. TF38-60S-0.5SV(830)	Gold	Surface Mount	Tabbed	Phosphor Bronze	50 V	UL94 V-0	Black	105 ░C	-40 °C	Liquid Crystal Polymer (LCP)	Contacts Vertical - 1 Sided	Flip Lock	0.3 mm	1.25 Áin	0.03 Ám	0.5 mm	0.02 in	20	60	0.205 in	5.2 mm	Liquid Crystal Polymer (LCP)	Solder	0.5 A	FFC FPC	Gray
Hirose Electric USA, Inc. TF38-40S-0.5SV(830)	Gold	Surface Mount	Tabbed	Phosphor Bronze	50 V	UL94 V-0	Black	85 °C	-40 °C	Liquid Crystal Polymer (LCP)	Contacts Vertical - 1 Sided	Flip Lock	0.3 mm	1.25 Áin	0.03 Ám	0.5 mm	0.02 in	20	40	0.205 in	5.2 mm	Liquid Crystal Polymer (LCP)	Solder	0.5 A	FFC FPC	Beige
Hirose Electric USA, Inc. TF38-18S-0.5SV(830)	Gold	Surface Mount	Tabbed	Phosphor Bronze	50 V	UL94 V-0	Black	85 °C	-40 °C	Liquid Crystal Polymer (LCP)	Contacts Vertical - 1 Sided	Flip Lock	0.3 mm	1.25 Áin	0.03 Ám	0.5 mm	0.02 in	20	18	0.205 in	5.2 mm	Liquid Crystal Polymer (LCP)	Solder	0.5 A	FFC FPC	Beige

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.35
		10	$ 1.14
		25	$ 1.09
		50	$ 1.07
		100	$ 1.02
		250	$ 0.93
		500	$ 0.84
	Digi-Reel®	1	$ 1.35
		10	$ 1.14
		25	$ 1.09
		50	$ 1.07
		100	$ 1.02
		250	$ 0.93
		500	$ 0.84
	Tape & Reel (TR)	1000	$ 0.56

Description

General part information

TF38 Series

16 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
