TF38-38S-0.5SV(830)
ActiveHirose Electric USA, Inc.

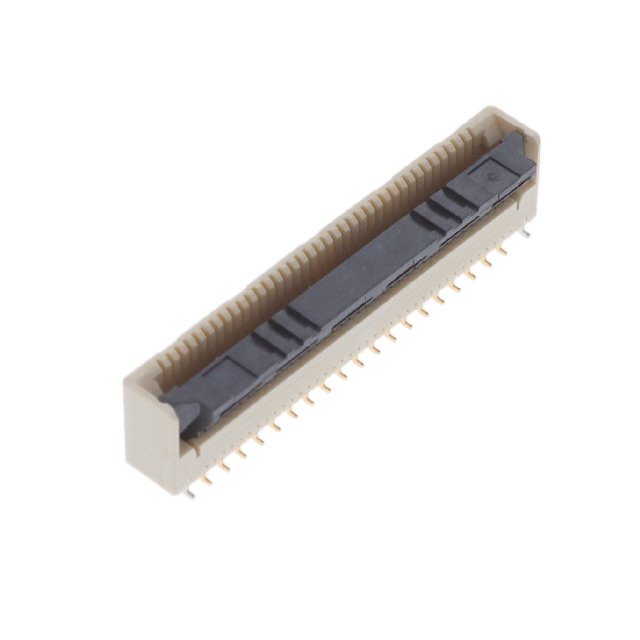

CONN FFC VERT 38POS 0.5MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TF38-38S-0.5SV(830)
ActiveHirose Electric USA, Inc.
CONN FFC VERT 38POS 0.5MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TF38-38S-0.5SV(830) |
|---|---|
| Actuator Color | Black |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Tabbed |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.25 Áin |
| Contact Finish Thickness | 0.03 Ám |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.205 in |
| Height Above Board | 5.2 mm |
| Housing Color | Beige |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Number of Positions | 38 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
TF38 Series
| Part | Contact Finish | Mounting Type | Cable End Type | Contact Material | Voltage Rating | Material Flammability Rating | Actuator Color | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Material | Connector/Contact Type | Locking Feature | FFC, FCB Thickness | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Mating Cycles | Number of Positions | Height Above Board | Height Above Board | Housing Material | Termination | Current Rating (Amps) | Flat Flex Type | Housing Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Gold | Surface Mount | Tabbed | Phosphor Bronze | 50 V | UL94 V-0 | Black | 85 °C | -40 °C | Liquid Crystal Polymer (LCP) | Contacts Vertical - 1 Sided | Flip Lock | 0.3 mm | 1.25 Áin | 0.03 Ám | 0.5 mm | 0.02 in | 20 | 20 | 0.205 in | 5.2 mm | Liquid Crystal Polymer (LCP) | Solder | 0.5 A | FFC FPC | Beige | |
Hirose Electric USA, Inc. | Gold | Surface Mount | Tabbed | Phosphor Bronze | 50 V | UL94 V-0 | Black | 85 °C | -40 °C | Liquid Crystal Polymer (LCP) | Contacts Vertical - 1 Sided | Flip Lock | 0.3 mm | 1.25 Áin | 0.03 Ám | 0.5 mm | 0.02 in | 20 | 0.205 in | 5.2 mm | Liquid Crystal Polymer (LCP) | Solder | 0.5 A | FFC FPC | Beige | ||
Hirose Electric USA, Inc. | Gold | Surface Mount | Tabbed | Phosphor Bronze | 50 V | UL94 V-0 | Black | 85 °C | -40 °C | Liquid Crystal Polymer (LCP) | Contacts Vertical - 1 Sided | Flip Lock | 0.3 mm | 1.25 Áin | 0.03 Ám | 0.5 mm | 0.02 in | 20 | 22 positions | 0.205 in | 5.2 mm | Liquid Crystal Polymer (LCP) | Solder | 0.5 A | FFC FPC | Beige | |
Hirose Electric USA, Inc. | Gold | Surface Mount | Tabbed | Phosphor Bronze | 50 V | UL94 V-0 | Black | 85 °C | -40 °C | Liquid Crystal Polymer (LCP) | Contacts Vertical - 1 Sided | Flip Lock | 0.3 mm | 1.25 Áin | 0.03 Ám | 0.5 mm | 0.02 in | 20 | 38 | 0.205 in | 5.2 mm | Liquid Crystal Polymer (LCP) | Solder | 0.5 A | FFC FPC | Beige | |
Hirose Electric USA, Inc. | Gold | Surface Mount | Tabbed | Phosphor Bronze | 50 V | UL94 V-0 | Black | 85 °C | -40 °C | Liquid Crystal Polymer (LCP) | Contacts Vertical - 1 Sided | Flip Lock | 0.3 mm | 1.25 Áin | 0.03 Ám | 0.5 mm | 0.02 in | 20 | 30 | 0.205 in | 5.2 mm | Liquid Crystal Polymer (LCP) | Solder | 0.5 A | FFC FPC | Beige | |
Hirose Electric USA, Inc. | Gold | Surface Mount | Tabbed | Phosphor Bronze | 50 V | UL94 V-0 | Black | 85 °C | -40 °C | Liquid Crystal Polymer (LCP) | Contacts Vertical - 1 Sided | Flip Lock | 0.3 mm | 1.25 Áin | 0.03 Ám | 0.5 mm | 0.02 in | 20 | 0.205 in | 5.2 mm | Liquid Crystal Polymer (LCP) | Solder | 0.5 A | FFC FPC | Beige | 16 | |
Hirose Electric USA, Inc. | Gold | Surface Mount | Tabbed | Phosphor Bronze | 50 V | UL94 V-0 | Black | 85 °C | -40 °C | Liquid Crystal Polymer (LCP) | Contacts Vertical - 1 Sided | Flip Lock | 0.3 mm | 1.25 Áin | 0.03 Ám | 0.5 mm | 0.02 in | 20 | 36 | 0.205 in | 5.2 mm | Liquid Crystal Polymer (LCP) | Solder | 0.5 A | FFC FPC | Beige | |
Hirose Electric USA, Inc. | Gold | Surface Mount | Tabbed | Phosphor Bronze | 50 V | UL94 V-0 | Black | 105 ░C | -40 °C | Liquid Crystal Polymer (LCP) | Contacts Vertical - 1 Sided | Flip Lock | 0.3 mm | 1.25 Áin | 0.03 Ám | 0.5 mm | 0.02 in | 20 | 60 | 0.205 in | 5.2 mm | Liquid Crystal Polymer (LCP) | Solder | 0.5 A | FFC FPC | Gray | |
Hirose Electric USA, Inc. | Gold | Surface Mount | Tabbed | Phosphor Bronze | 50 V | UL94 V-0 | Black | 85 °C | -40 °C | Liquid Crystal Polymer (LCP) | Contacts Vertical - 1 Sided | Flip Lock | 0.3 mm | 1.25 Áin | 0.03 Ám | 0.5 mm | 0.02 in | 20 | 40 | 0.205 in | 5.2 mm | Liquid Crystal Polymer (LCP) | Solder | 0.5 A | FFC FPC | Beige | |
Hirose Electric USA, Inc. | Gold | Surface Mount | Tabbed | Phosphor Bronze | 50 V | UL94 V-0 | Black | 85 °C | -40 °C | Liquid Crystal Polymer (LCP) | Contacts Vertical - 1 Sided | Flip Lock | 0.3 mm | 1.25 Áin | 0.03 Ám | 0.5 mm | 0.02 in | 20 | 18 | 0.205 in | 5.2 mm | Liquid Crystal Polymer (LCP) | Solder | 0.5 A | FFC FPC | Beige |
