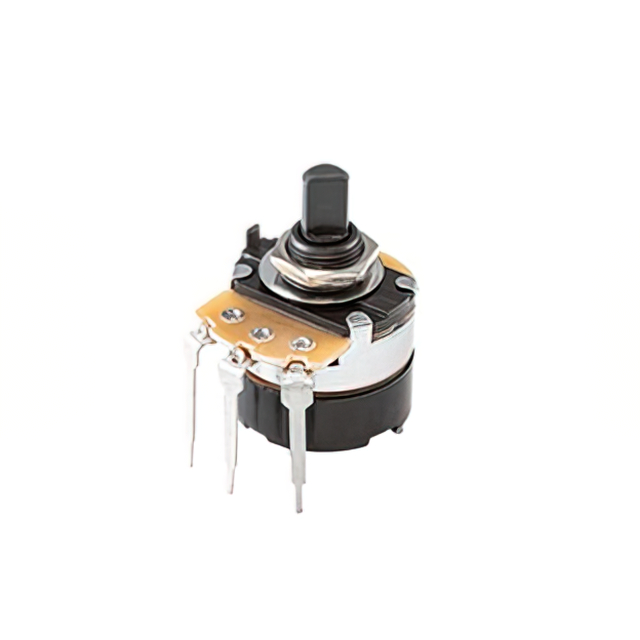

PTN24B-C1015DPA

Active

CUI Devices

POT 10K OHM 1/2W CARBON LOG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTN24B-C1015DPA

Active

CUI Devices

POT 10K OHM 1/2W CARBON LOG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTN24B-C1015DPA

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length	15 mm
Actuator Length [z]	0.591 in
Actuator Type	Flatted
Adjustment Type	Top Adjustment
Built in Switch	Rotary, SPST
Bushing Thread	0.75
Bushing Thread	M9.5
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance (Ohms)	10k
Resistive Material	Carbon
Rotation	305 °
Size - Body [diameter]	0.945 in
Size - Body [diameter]	24 mm
Taper	Logarithmic
Termination Style	PC Pins
Tolerance	20 %

PTN24B Series

Part	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size - Body [diameter]	Size - Body [diameter]	Number of Gangs	Number of Turns	Rotation	Power (Watts)	Power (Watts)	Resistive Material	Built in Switch	Bushing Thread [custom]	Bushing Thread [diameter]	Actuator Length [z]	Actuator Length [z]	Tolerance	Termination Style	Resistance (Ohms)	Adjustment Type	Actuator Type	Taper	Bushing Thread	Bushing Thread	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]	Actuator Length
CUI Devices PTN24B-C10020K1C	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8	20 mm	0.787 in	20 %	PC Pins	100 kOhms	Top Adjustment	Knurled and Slotted	Reverse Logarithmic
CUI Devices PTN24B-B1020DPB	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST			20 mm	0.787 in	20 %	Solder Lug		User Defined	Flatted	Linear	0.75	M9.5	10k
CUI Devices PTN24B-B5025DB	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8			20 %	Solder Lug	50 kOhms	User Defined	Flatted	Linear				0.984 in	25 mm
CUI Devices PTN24B-C20020K1B	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8	20 mm	0.787 in	20 %	PC Pins		Top Adjustment	Knurled and Slotted	Linear
CUI Devices PTN24B-C1015DPA	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST				0.591 in	20 %	PC Pins		Top Adjustment	Flatted	Logarithmic	0.75	M9.5	10k			15 mm
CUI Devices PTN24B-C1025EB	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8			20 %	PC Pins		Top Adjustment	Slotted	Linear			10k	0.984 in	25 mm
CUI Devices PTN24B-B1015K1B	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8		0.591 in	20 %	Solder Lug		User Defined	Knurled and Slotted	Linear			10k			15 mm
CUI Devices PTN24B-C5025DB	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8			20 %	PC Pins	50 kOhms	Top Adjustment	Flatted	Linear				0.984 in	25 mm
CUI Devices PTN24B-C10020K1PC	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon		0.75 mm	M8	20 mm	0.787 in	20 %	PC Pins	100 kOhms	Top Adjustment	Knurled and Slotted	Reverse Logarithmic
CUI Devices PTN24B-B1015DPA	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST				0.591 in	20 %	Solder Lug		User Defined	Flatted	Logarithmic	0.75	M9.5	10k			15 mm
