PTN24B-C5025DB

Active

CUI Devices

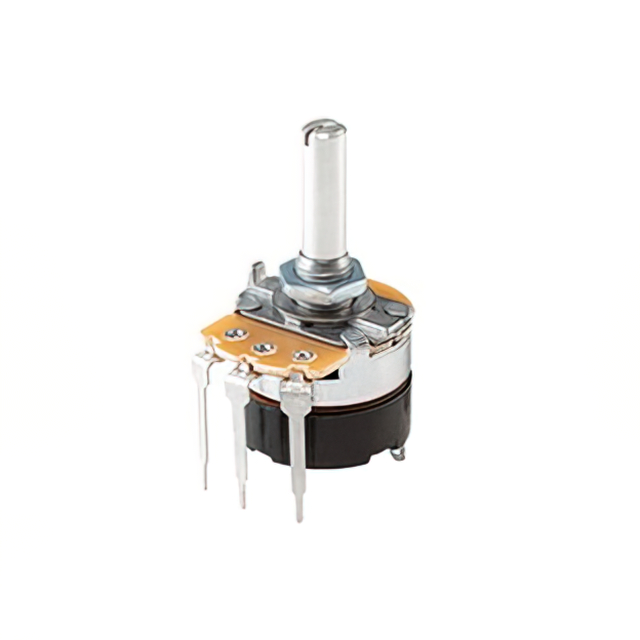

POT 50K OHM 1/2W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTN24B-C5025DB

Active

CUI Devices

POT 50K OHM 1/2W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTN24B-C5025DB

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length [x]	0.984 in
Actuator Length [x]	25 mm
Actuator Type	Flatted
Adjustment Type	Top Adjustment
Built in Switch	Rotary, SPST
Bushing Thread [custom]	0.75 mm
Bushing Thread [diameter]	M8
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance (Ohms)	50 kOhms
Resistive Material	Carbon
Rotation	305 °
Size - Body [diameter]	0.945 in
Size - Body [diameter]	24 mm
Taper	Linear
Termination Style	PC Pins
Tolerance	20 %

PTN24B Series

Part	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size - Body [diameter]	Size - Body [diameter]	Number of Gangs	Number of Turns	Rotation	Power (Watts)	Power (Watts)	Resistive Material	Built in Switch	Bushing Thread [custom]	Bushing Thread [diameter]	Actuator Length [z]	Actuator Length [z]	Tolerance	Termination Style	Resistance (Ohms)	Adjustment Type	Actuator Type	Taper	Bushing Thread	Bushing Thread	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]	Actuator Length
CUI Devices PTN24B-C10020K1C	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8	20 mm	0.787 in	20 %	PC Pins	100 kOhms	Top Adjustment	Knurled and Slotted	Reverse Logarithmic
CUI Devices PTN24B-B1020DPB	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST			20 mm	0.787 in	20 %	Solder Lug		User Defined	Flatted	Linear	0.75	M9.5	10k
CUI Devices PTN24B-B5025DB	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8			20 %	Solder Lug	50 kOhms	User Defined	Flatted	Linear				0.984 in	25 mm
CUI Devices PTN24B-C20020K1B	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8	20 mm	0.787 in	20 %	PC Pins		Top Adjustment	Knurled and Slotted	Linear
CUI Devices PTN24B-C1015DPA	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST				0.591 in	20 %	PC Pins		Top Adjustment	Flatted	Logarithmic	0.75	M9.5	10k			15 mm
CUI Devices PTN24B-C1025EB	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8			20 %	PC Pins		Top Adjustment	Slotted	Linear			10k	0.984 in	25 mm
CUI Devices PTN24B-B1015K1B	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8		0.591 in	20 %	Solder Lug		User Defined	Knurled and Slotted	Linear			10k			15 mm
CUI Devices PTN24B-C5025DB	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST	0.75 mm	M8			20 %	PC Pins	50 kOhms	Top Adjustment	Flatted	Linear				0.984 in	25 mm
CUI Devices PTN24B-C10020K1PC	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon		0.75 mm	M8	20 mm	0.787 in	20 %	PC Pins	100 kOhms	Top Adjustment	Knurled and Slotted	Reverse Logarithmic
CUI Devices PTN24B-B1015DPA	0.236 in	6 mm	0.945 in	24 mm	1	1	305 °	0.5 W	0.5 W	Carbon	Rotary SPST				0.591 in	20 %	Solder Lug		User Defined	Flatted	Logarithmic	0.75	M9.5	10k			15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.03
		10	$ 1.79
		25	$ 1.60
		40	$ 1.54
		80	$ 1.48
		240	$ 1.42
		440	$ 1.17
		960	$ 1.11
		4920	$ 0.92

Description

General part information

PTN24B Series

50k Ohm 1 Gang Linear Panel Mount Potentiometer Rotary, SPST 1.0 Kierros Carbon 0.5W, 1/2W PC Pins
