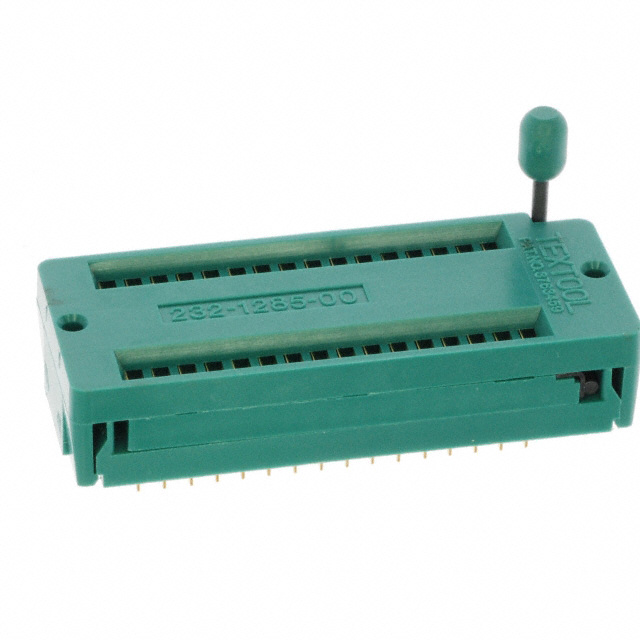

232-1285-00-0602J

Active

3M (TC)

IC & COMPONENT SOCKET, 32 CONTACTS, DIP SOCKET, 2.54 MM, 15.24 MM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

232-1285-00-0602J

Active

3M (TC)

IC & COMPONENT SOCKET, 32 CONTACTS, DIP SOCKET, 2.54 MM, 15.24 MM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	232-1285-00-0602J

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	30 µin
Contact Finish Thickness - Post	0.76 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Beryllium Copper
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polysulfone (PSU), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Connector
Number of Positions or Pins (Grid) [custom]	2 x 16
Number of Positions or Pins (Grid) [custom]	32
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Press-Fit
Termination Post Length	0.11 in
Termination Post Length	2.78 mm
Type	15.24 mm
Type	DIP, ZIF (ZIP)
Type	0.6 "

232 Series

Part	Thickness	Thickness	Thickness	Backing, Carrier	Tape Type	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Width [y]	Width [y]	Usage	Length	Length	Length	Shelf Life Start	Adhesive	Shelf Life	Color	Contact Material - Post	Number of Positions or Pins (Grid)	Type	Termination	Features	Contact Resistance	Housing Material	Contact Material - Mating	Contact Finish - Mating	Contact Finish - Post	Mounting Type	Termination Post Length [x]	Termination Post Length [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Type	Type	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Post Length	Termination Post Length	Width [x]	Width [x]	Number of Positions or Pins (Grid) [custom]
3M (TC) 232-48MM-55M	6.3 mils	0.0063 "	0.16 mm	Crepe Paper Treated	Masking	70 °F	21 °C	48 mm	1.89 in	Medium Temp Paint Bake	60 yds	55 m	180 ft	Date of Manufacture	Rubber	12 Months	Tan
3M (TC) 232-5205-01																		Beryllium Copper	32	QFN	Solder	Closed Frame	25 mOhm	Polyethersulfone (PES)	Beryllium Copper	Gold	Gold	Through Hole	2.9 mm	0.114 in
3M (TC) 232-1287-00-0602J																		Beryllium Copper		DIP ZIF (ZIP)	Press-Fit	Closed Frame	15 mOhm	Polysulfone (PSU) Glass Filled	Beryllium Copper	Gold	Gold	Connector			30 Áin	0.76 Ám	UL94 V-0	15.24 mm	0.6 "	0.1 in	2.54 mm	2 x 16	32	2.54 mm	0.1 in	30 µin	0.76 µm	1 A	-55 °C	125 °C	0.11 in	2.78 mm
3M (TC) 232-1271-00-1102JH																							25 mOhm
3M (TC) 232-96MMX55M	6.3 mils	0.0063 "	0.16 mm	Crepe Paper Treated	Masking	70 °F	21 °C			Medium Temp Paint Bake	60 yds	55 m	180 ft	Date of Manufacture	Rubber	12 Months	Tan																																3.78 "	96 mm
3M (TC) 232-2601-00-0602																		Beryllium Copper		SIP ZIF (ZIP)	Solder			Polysulfone (PSU) Glass Filled	Beryllium Copper	Gold	Gold	Through Hole					UL94 V-0			0.1 in	2.54 mm	1 x 32		2.54 mm	0.1 in	30 µin	0.76 µm	1 A	-55 °C	125 °C	0.13 in	3.3 mm			32
3M (TC) 232-1285-00-0602J																		Beryllium Copper		DIP ZIF (ZIP)	Press-Fit	Closed Frame		Polysulfone (PSU) Glass Filled	Beryllium Copper	Gold	Gold	Connector			30 Áin	0.76 Ám	UL94 V-0	15.24 mm	0.6 "	0.1 in	2.54 mm	2 x 16	32	2.54 mm	0.1 in	30 µin	0.76 µm	1 A	-55 °C	125 °C	0.11 in	2.78 mm
3M (TC) 232-1270-51-0602																							25 mOhm
3M (TC) 232-2601-50-0602																							25 mOhm
3M (TC) 232-12MMX55M	6.3 mils	0.0063 "	0.16 mm	Crepe Paper Treated	Masking	70 °F	21 °C			Medium Temp Paint Bake	60 yds	55 m	180 ft	Date of Manufacture	Rubber	12 Months	Tan																																0.47 in	12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 28.02
		10	$ 24.54
		30	$ 23.48
		50	$ 22.72
		100	$ 21.96
		250	$ 20.75
Newark	N/A	1	$ 16.58

Description

General part information

232 Series

32 (2 x 16) Pos DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing Socket Gold Connector
