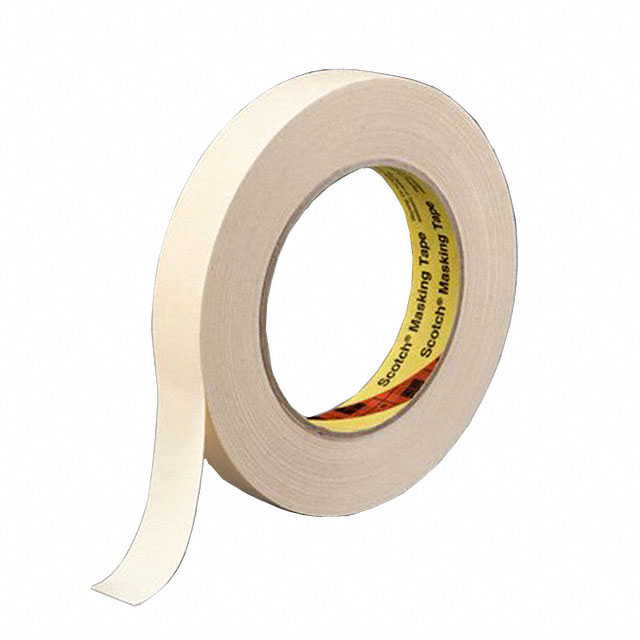

232-48MM-55M

Active

3M (TC)

TAPE MASKING TAN 1.89"X60YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher Datasheet

232-48MM-55M

Active

3M (TC)

TAPE MASKING TAN 1.89"X60YDS

Deep-Dive with AI

DocumentsDate Code Decipher Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	232-48MM-55M

Adhesive	Rubber
Backing, Carrier	Crepe Paper, Treated
Color	Tan
Length	60 yds
Length	55 m
Length	180 ft
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Masking
Thickness	6.3 mils
Thickness	0.0063 "
Thickness	0.16 mm
Usage	Medium Temp, Paint Bake
Width [y]	48 mm
Width [y]	1.89 in

232 Series

Part	Thickness	Thickness	Thickness	Backing, Carrier	Tape Type	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Width [y]	Width [y]	Usage	Length	Length	Length	Shelf Life Start	Adhesive	Shelf Life	Color	Contact Material - Post	Number of Positions or Pins (Grid)	Type	Termination	Features	Contact Resistance	Housing Material	Contact Material - Mating	Contact Finish - Mating	Contact Finish - Post	Mounting Type	Termination Post Length [x]	Termination Post Length [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Type	Type	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Post Length	Termination Post Length	Width [x]	Width [x]	Number of Positions or Pins (Grid) [custom]
3M (TC) 232-48MM-55M	6.3 mils	0.0063 "	0.16 mm	Crepe Paper Treated	Masking	70 °F	21 °C	48 mm	1.89 in	Medium Temp Paint Bake	60 yds	55 m	180 ft	Date of Manufacture	Rubber	12 Months	Tan
3M (TC) 232-5205-01																		Beryllium Copper	32	QFN	Solder	Closed Frame	25 mOhm	Polyethersulfone (PES)	Beryllium Copper	Gold	Gold	Through Hole	2.9 mm	0.114 in
3M (TC) 232-1287-00-0602J																		Beryllium Copper		DIP ZIF (ZIP)	Press-Fit	Closed Frame	15 mOhm	Polysulfone (PSU) Glass Filled	Beryllium Copper	Gold	Gold	Connector			30 Áin	0.76 Ám	UL94 V-0	15.24 mm	0.6 "	0.1 in	2.54 mm	2 x 16	32	2.54 mm	0.1 in	30 µin	0.76 µm	1 A	-55 °C	125 °C	0.11 in	2.78 mm
3M (TC) 232-1271-00-1102JH																							25 mOhm
3M (TC) 232-96MMX55M	6.3 mils	0.0063 "	0.16 mm	Crepe Paper Treated	Masking	70 °F	21 °C			Medium Temp Paint Bake	60 yds	55 m	180 ft	Date of Manufacture	Rubber	12 Months	Tan																																3.78 "	96 mm
3M (TC) 232-2601-00-0602																		Beryllium Copper		SIP ZIF (ZIP)	Solder			Polysulfone (PSU) Glass Filled	Beryllium Copper	Gold	Gold	Through Hole					UL94 V-0			0.1 in	2.54 mm	1 x 32		2.54 mm	0.1 in	30 µin	0.76 µm	1 A	-55 °C	125 °C	0.13 in	3.3 mm			32
3M (TC) 232-1285-00-0602J																		Beryllium Copper		DIP ZIF (ZIP)	Press-Fit	Closed Frame		Polysulfone (PSU) Glass Filled	Beryllium Copper	Gold	Gold	Connector			30 Áin	0.76 Ám	UL94 V-0	15.24 mm	0.6 "	0.1 in	2.54 mm	2 x 16	32	2.54 mm	0.1 in	30 µin	0.76 µm	1 A	-55 °C	125 °C	0.11 in	2.78 mm
3M (TC) 232-1270-51-0602																							25 mOhm
3M (TC) 232-2601-50-0602																							25 mOhm
3M (TC) 232-12MMX55M	6.3 mils	0.0063 "	0.16 mm	Crepe Paper Treated	Masking	70 °F	21 °C			Medium Temp Paint Bake	60 yds	55 m	180 ft	Date of Manufacture	Rubber	12 Months	Tan																																0.47 in	12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 36.78
