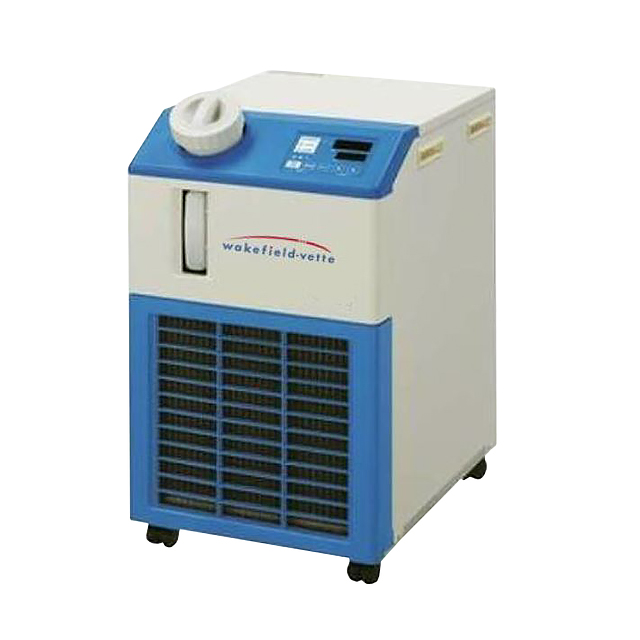

HPLC-20

Active

Wakefield-Vette

RECIRC CHILLER 220VAC 1900W

Search across all available documentation for this part.

Active

Wakefield-Vette

RECIRC CHILLER 220VAC 1900W

Technical Specifications

Parameters and characteristics for this part

Specification	HPLC-20

Current	5.1 A
Dimensions - Overall [x]	521 mm
Dimensions - Overall [x]	20.52 in
Dimensions - Overall [y]	14.84 in
Dimensions - Overall [y]	377 mm
Dimensions - Overall [z]	25.59 in
Dimensions - Overall [z]	650 mm
Features	Auto Restart, Temperature Control
Flow Rate	1.85 GPM
Flow Rate	7 LPM
Fluid Capacity	169.1 oz
Fluid Capacity	5000 ML
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	5 °C
Power - Cooling	1300 W
Product Type	Active, Recirculating Chiller
Ratings	CE, UL
Voltage [Max]	230 VAC
Voltage [Min]	200 VAC
Weight	40 kg
Weight	88 lbs

Part	Power - Cooling	Operating Temperature [Min]	Operating Temperature [Max]	Voltage [Min]	Voltage [Max]	Product Type	Features	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [y]	Dimensions - Overall [x]	Ratings	Weight	Weight	Fluid Capacity	Fluid Capacity	Current	Flow Rate	Flow Rate	Voltage	Dimensions - Overall [z]	Dimensions - Overall [y]	For Use With/Related Products	Accessory Type
Wakefield-Vette HPLC-RM-200	200 W	10 °C	35 °C	100 VAC	240 VAC	Active Recirculating Chiller	Temperature Control	6.93 "	19.06 "	176 mm	344 mm	13.54 "	484 mm	CE UL
Wakefield-Vette HPLC-10	1300 W	5 °C	40 °C			Active Recirculating Chiller	Auto Restart Temperature Control	25.59 in	20.52 in	650 mm	377 mm	14.84 in	521 mm	CE UL	40 kg	88 lbs	169.1 oz	5000 ML	8.3 A	1.85 GPM	7 LPM	110 VAC 115 VAC
Wakefield-Vette HPLC-RM-800	800 W	10 °C	35 °C	100 VAC	240 VAC	Active Recirculating Chiller	Temperature Control	10.51 in	19.06 "			18.11 in	484 mm	CE UL									267 mm	460 mm
Wakefield-Vette HPLC-BP1																									HPLC-10 HPLC-20	Bypass Kit
Wakefield-Vette HPLC-20	1300 W	5 °C	40 °C	200 VAC	230 VAC	Active Recirculating Chiller	Auto Restart Temperature Control	25.59 in	20.52 in	650 mm	377 mm	14.84 in	521 mm	CE UL	40 kg	88 lbs	169.1 oz	5000 ML	5.1 A	1.85 GPM	7 LPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6234.26

General part information

Active, Recirculating Chiller 200 ~ 230VAC 1300 W 5.1 A 1.85GPM (7.0LPM)
