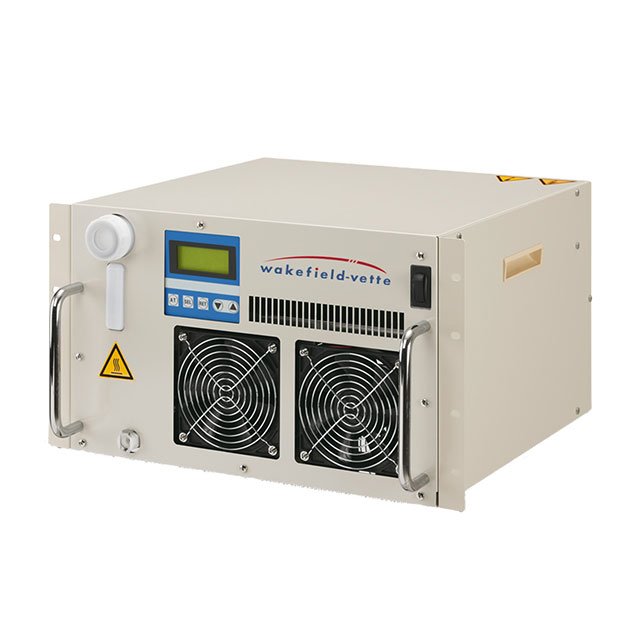

HPLC-RM-800

Active

Wakefield-Vette

RACK MOUNT CHILLER 800W

Search across all available documentation for this part.

Active

Wakefield-Vette

RACK MOUNT CHILLER 800W

Technical Specifications

Parameters and characteristics for this part

Specification	HPLC-RM-800

Dimensions - Overall [x]	484 mm
Dimensions - Overall [x]	19.06 "
Dimensions - Overall [y]	460 mm
Dimensions - Overall [y]	18.11 in
Dimensions - Overall [z]	267 mm
Dimensions - Overall [z]	10.51 in
Features	Temperature Control
Operating Temperature [Max]	35 °C
Operating Temperature [Min]	10 °C
Power - Cooling	800 W
Product Type	Active, Recirculating Chiller
Ratings	CE, UL
Voltage [Max]	240 VAC
Voltage [Min]	100 VAC

Part	Power - Cooling	Operating Temperature [Min]	Operating Temperature [Max]	Voltage [Min]	Voltage [Max]	Product Type	Features	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [y]	Dimensions - Overall [x]	Ratings	Weight	Weight	Fluid Capacity	Fluid Capacity	Current	Flow Rate	Flow Rate	Voltage	Dimensions - Overall [z]	Dimensions - Overall [y]	For Use With/Related Products	Accessory Type
Wakefield-Vette HPLC-RM-200	200 W	10 °C	35 °C	100 VAC	240 VAC	Active Recirculating Chiller	Temperature Control	6.93 "	19.06 "	176 mm	344 mm	13.54 "	484 mm	CE UL
Wakefield-Vette HPLC-10	1300 W	5 °C	40 °C			Active Recirculating Chiller	Auto Restart Temperature Control	25.59 in	20.52 in	650 mm	377 mm	14.84 in	521 mm	CE UL	40 kg	88 lbs	169.1 oz	5000 ML	8.3 A	1.85 GPM	7 LPM	110 VAC 115 VAC
Wakefield-Vette HPLC-RM-800	800 W	10 °C	35 °C	100 VAC	240 VAC	Active Recirculating Chiller	Temperature Control	10.51 in	19.06 "			18.11 in	484 mm	CE UL									267 mm	460 mm
Wakefield-Vette HPLC-BP1																									HPLC-10 HPLC-20	Bypass Kit
Wakefield-Vette HPLC-20	1300 W	5 °C	40 °C	200 VAC	230 VAC	Active Recirculating Chiller	Auto Restart Temperature Control	25.59 in	20.52 in	650 mm	377 mm	14.84 in	521 mm	CE UL	40 kg	88 lbs	169.1 oz	5000 ML	5.1 A	1.85 GPM	7 LPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11294.48

General part information

Active, Recirculating Chiller 100 ~ 240VAC 800 W
