M22-2511205
ActiveHarwin Inc.

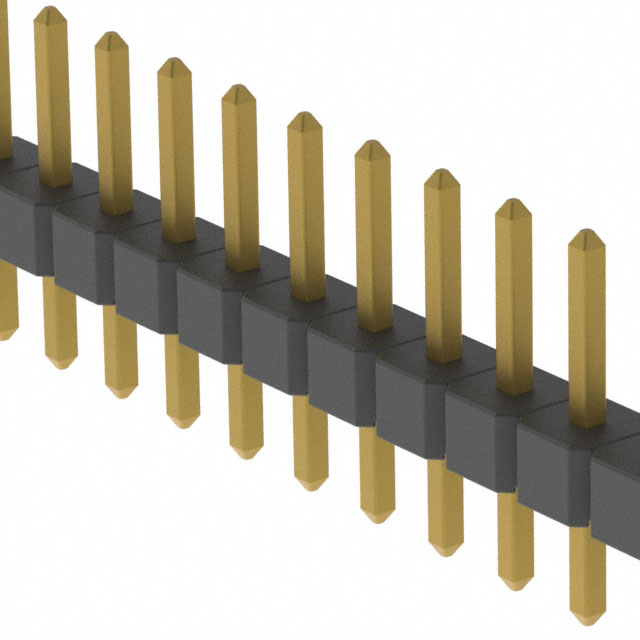

CONN, HEADER, 12POS, 1ROW, 2MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M22-2511205
ActiveHarwin Inc.
CONN, HEADER, 12POS, 1ROW, 2MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M22-2511205 |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.138 in |
| Contact Length - Mating | 3.5 mm |
| Contact Length - Post | 0.091 in |
| Contact Length - Post | 2.3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 8.6 mm, 5.9 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 7.3 mm |
| Overall Contact Length | 0.287 in |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
M22-251 Series
| Part | Fastening Type | Insulation Material | Pitch - Mating [x] | Pitch - Mating [x] | Contact Type | Number of Rows | Contact Length - Post | Contact Length - Post | Mounting Type | Current Rating (Amps) | Number of Positions Loaded | Insulation Color | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Termination | Mated Stacking Heights | Overall Contact Length | Overall Contact Length | Number of Positions | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Shrouding | Material Flammability Rating | Contact Material | Connector Type | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Push-Pull | Nylon 6T Polyamide (PA6T) | 0.079 in | 2 mm | Male Pin | 1 | 0.091 in | 2.3 mm | Through Hole | 1 A | All | Black | 1.5 mm | 0.059 " | 0.138 in | 3.5 mm | Solder | 5.9 mm 8.6 mm | 7.3 mm | 0.287 in | 6 | Square | -40 °C | 105 ░C | Tin | Unshrouded | UL94 V-0 | Phosphor Bronze | Cuttable Header | ||
Harwin Inc. | Push-Pull | Nylon 6T Polyamide (PA6T) | 0.079 in | 2 mm | Male Pin | 1 | 0.091 in | 2.3 mm | Through Hole | 1 A | All | Black | 1.5 mm | 0.059 " | 0.138 in | 3.5 mm | Solder | 5.9 mm 8.6 mm | 7.3 mm | 0.287 in | 12 | Square | -40 °C | 105 ░C | Unshrouded | UL94 V-0 | Phosphor Bronze | Cuttable Header | Gold | ||
Harwin Inc. | Push-Pull | Nylon 6T Polyamide (PA6T) | 0.079 in | 2 mm | Male Pin | 1 | 0.091 in | 2.3 mm | Through Hole | 1 A | All | Black | 1.5 mm | 0.059 " | 0.138 in | 3.5 mm | Solder | 5.9 mm 8.6 mm | 7.3 mm | 0.287 in | Square | -40 °C | 105 ░C | Tin | Unshrouded | UL94 V-0 | Phosphor Bronze | Cuttable Header | 16 | ||
Harwin Inc. | Push-Pull | Nylon 6T Polyamide (PA6T) | 0.079 in | 2 mm | Male Pin | 1 | 0.091 in | 2.3 mm | Through Hole | 1 A | All | Black | 1.5 mm | 0.059 " | 0.138 in | 3.5 mm | Solder | 5.9 mm 8.6 mm | 7.3 mm | 0.287 in | 20 | Square | -40 °C | 105 ░C | Tin | Unshrouded | UL94 V-0 | Phosphor Bronze | Cuttable Header | ||
Harwin Inc. | Push-Pull | Nylon 6T Polyamide (PA6T) | 0.079 in | 2 mm | Male Pin | 1 | 0.091 in | 2.3 mm | Through Hole | 1 A | All | Black | 1.5 mm | 0.059 " | 0.138 in | 3.5 mm | Solder | 5.9 mm 8.6 mm | 7.3 mm | 0.287 in | 10 | Square | -40 °C | 105 ░C | Unshrouded | UL94 V-0 | Phosphor Bronze | Cuttable Header | Gold | ||
Harwin Inc. | Push-Pull | Nylon 6T Polyamide (PA6T) | 0.079 in | 2 mm | Male Pin | 1 | 0.091 in | 2.3 mm | Through Hole | 1 A | All | Black | 1.5 mm | 0.059 " | 0.138 in | 3.5 mm | Solder | 5.9 mm 8.6 mm | 7.3 mm | 0.287 in | 2 | Square | -40 °C | 105 ░C | Tin | Unshrouded | UL94 V-0 | Phosphor Bronze | Cuttable Header | ||
Harwin Inc. | Push-Pull | Nylon 6T Polyamide (PA6T) | 0.079 in | 2 mm | Male Pin | 1 | 0.091 in | 2.3 mm | Through Hole | 1 A | All | Black | 1.5 mm | 0.059 " | 0.138 in | 3.5 mm | Solder | 5.9 mm 8.6 mm | 7.3 mm | 0.287 in | 6 | Square | -40 °C | 105 ░C | Unshrouded | UL94 V-0 | Phosphor Bronze | Cuttable Header | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M22-251 Series
Connector Header Through Hole 12 position 0.079" (2.00mm)
