M22-2510646

Active

Harwin Inc.

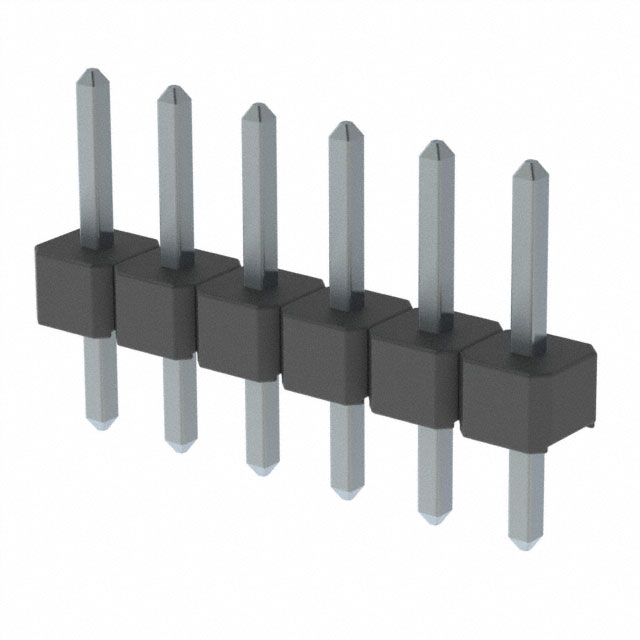

CONN HEADER VERT 6POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M20-003 +1

M22-2510646

Active

Harwin Inc.

CONN HEADER VERT 6POS 2MM

Deep-Dive with AI

DocumentsDatasheet M20-003 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-2510646

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	8.6 mm, 5.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	7.3 mm
Overall Contact Length	0.287 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

M22-251 Series

Part	Fastening Type	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Number of Rows	Contact Length - Post	Contact Length - Post	Mounting Type	Current Rating (Amps)	Number of Positions Loaded	Insulation Color	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Termination	Mated Stacking Heights	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Shrouding	Material Flammability Rating	Contact Material	Connector Type	Contact Finish - Mating	Number of Positions
Harwin Inc. M22-2510646	Push-Pull	Nylon 6T Polyamide (PA6T)	0.079 in	2 mm	Male Pin	1	0.091 in	2.3 mm	Through Hole	1 A	All	Black	1.5 mm	0.059 "	0.138 in	3.5 mm	Solder	5.9 mm 8.6 mm	7.3 mm	0.287 in	6	Square	-40 °C	105 ░C	Tin	Unshrouded	UL94 V-0	Phosphor Bronze	Cuttable Header
Harwin Inc. M22-2511205	Push-Pull	Nylon 6T Polyamide (PA6T)	0.079 in	2 mm	Male Pin	1	0.091 in	2.3 mm	Through Hole	1 A	All	Black	1.5 mm	0.059 "	0.138 in	3.5 mm	Solder	5.9 mm 8.6 mm	7.3 mm	0.287 in	12	Square	-40 °C	105 ░C		Unshrouded	UL94 V-0	Phosphor Bronze	Cuttable Header	Gold
Harwin Inc. M22-2511646	Push-Pull	Nylon 6T Polyamide (PA6T)	0.079 in	2 mm	Male Pin	1	0.091 in	2.3 mm	Through Hole	1 A	All	Black	1.5 mm	0.059 "	0.138 in	3.5 mm	Solder	5.9 mm 8.6 mm	7.3 mm	0.287 in		Square	-40 °C	105 ░C	Tin	Unshrouded	UL94 V-0	Phosphor Bronze	Cuttable Header		16
Harwin Inc. M22-2512046	Push-Pull	Nylon 6T Polyamide (PA6T)	0.079 in	2 mm	Male Pin	1	0.091 in	2.3 mm	Through Hole	1 A	All	Black	1.5 mm	0.059 "	0.138 in	3.5 mm	Solder	5.9 mm 8.6 mm	7.3 mm	0.287 in	20	Square	-40 °C	105 ░C	Tin	Unshrouded	UL94 V-0	Phosphor Bronze	Cuttable Header
Harwin Inc. M22-2511005	Push-Pull	Nylon 6T Polyamide (PA6T)	0.079 in	2 mm	Male Pin	1	0.091 in	2.3 mm	Through Hole	1 A	All	Black	1.5 mm	0.059 "	0.138 in	3.5 mm	Solder	5.9 mm 8.6 mm	7.3 mm	0.287 in	10	Square	-40 °C	105 ░C		Unshrouded	UL94 V-0	Phosphor Bronze	Cuttable Header	Gold
Harwin Inc. M22-2510246	Push-Pull	Nylon 6T Polyamide (PA6T)	0.079 in	2 mm	Male Pin	1	0.091 in	2.3 mm	Through Hole	1 A	All	Black	1.5 mm	0.059 "	0.138 in	3.5 mm	Solder	5.9 mm 8.6 mm	7.3 mm	0.287 in	2	Square	-40 °C	105 ░C	Tin	Unshrouded	UL94 V-0	Phosphor Bronze	Cuttable Header
Harwin Inc. M22-2510605	Push-Pull	Nylon 6T Polyamide (PA6T)	0.079 in	2 mm	Male Pin	1	0.091 in	2.3 mm	Through Hole	1 A	All	Black	1.5 mm	0.059 "	0.138 in	3.5 mm	Solder	5.9 mm 8.6 mm	7.3 mm	0.287 in	6	Square	-40 °C	105 ░C		Unshrouded	UL94 V-0	Phosphor Bronze	Cuttable Header	Gold
