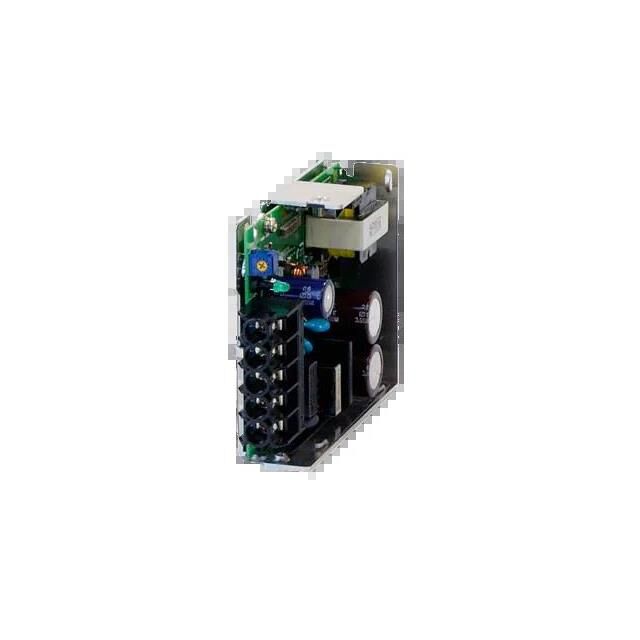

HWS30A-48
ActiveAC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 31 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED
Deep-Dive with AI
Search across all available documentation for this part.
HWS30A-48
ActiveAC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 31 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HWS30A-48 |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 650 mA |
| Efficiency | 83 % |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 95 mm |
| Size / Dimension [x] | 3.74 " |
| Size / Dimension [y] | 1.24 in |
| Size / Dimension [y] | 31.5 mm |
| Size / Dimension [z] | 3.23 in |
| Size / Dimension [z] | 82 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HWS30 Series
HWS30A-48 is a HWS-30A series ultra reliable, conservatively rated single output industrial AC-DC power supply. It has a limited lifetime warranty, unique to the industry. This product is certified to IEC 62368-1, UL 508 and is SEMI F47 compliant. It also meet Class B conducted and radiated emissions without additional filtering or shielding. It includes overcurrent, overvoltage and overtemperature protection.
