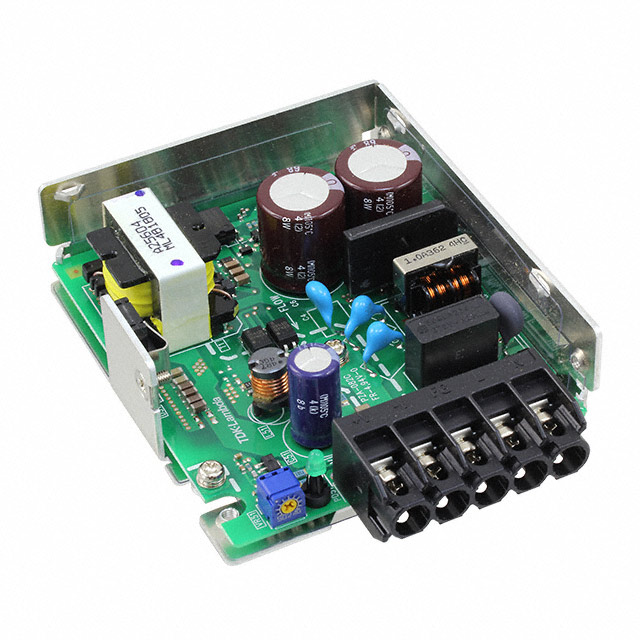

HWS30A-5/ME

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), INDUSTRIAL, 1 OUTPUTS, 30 W, 5 V, 6 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), INDUSTRIAL, 1 OUTPUTS, 30 W, 5 V, 6 A

Technical Specifications

Parameters and characteristics for this part

Specification	HWS30A-5/ME

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	6 A
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	10 °C
Power (Watts)	30 W
Size / Dimension [x]	95 mm
Size / Dimension [x]	3.74 "
Size / Dimension [y]	1.24 in
Size / Dimension [y]	31.5 mm
Size / Dimension [z]	3.23 in
Size / Dimension [z]	82 mm
Type	Open Frame
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Mounting Type	Approval Agency	Applications	Voltage - Isolation	Current - Output 1	Features	Voltage - Output 1	Type	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]
TDK-LAMBDA HWS30A-48/HD	Chassis Mount	CE	ITE (Commercial)	3000 V	650 mA	Adjustable Output DC Input Capable Universal Input	48 V	Conformal Coated Open Frame	1	3.23 in	95 mm	82 mm	3.74 "	1.24 in	31.5 mm	85 VAC	265 VAC	83 %	30 W
TDK-LAMBDA HWS30A-5/ME	Chassis Mount	CE	ITE (Commercial) Medical	3000 V	6 A	Adjustable Output DC Input Capable Universal Input	5 V	Open Frame	1	3.23 in	95 mm	82 mm	3.74 "	1.24 in	31.5 mm	85 VAC	265 VAC		30 W	10 °C	70 °C
TDK-LAMBDA HWS30A-24	Chassis Mount	CE	Industrial ITE (Commercial)	3000 V	1.3 A	Adjustable Output Universal Input	24 V	Open Frame	1	3.23 in	95 mm	82 mm	3.74 "	1.24 in	31.5 mm	85 VAC 120 VDC	264 VAC 370 VDC	88 %	30 W	-10 °C	70 °C
TDK-LAMBDA HWS30A-48	Chassis Mount	CE	Industrial ITE (Commercial)	3000 V	650 mA	Adjustable Output Universal Input	48 V	Open Frame	1	3.23 in	95 mm	82 mm	3.74 "	1.24 in	31.5 mm	85 VAC 120 VDC	264 VAC 370 VDC	83 %	30 W	-10 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 5V 85 ~ 265 VAC Input
