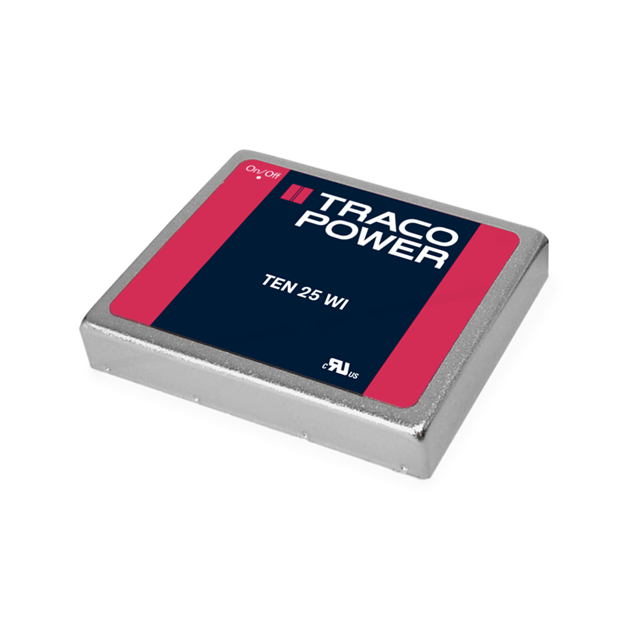

TEN 25-4812WI
Traco Power
DC DC CONVERTER 12V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TEN 25-4812WI
Traco Power
DC DC CONVERTER 12V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TEN 25-4812WI |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | 89 % |
| Features | OVP, Remote On/Off, SCP, OTP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module, 6 Leads |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 1.6 " |
| Size / Dimension [y] | 40.6 mm |
| Size / Dimension [z] | 9.3 mm |
| Size / Dimension [z] | 0.37 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 61.80 | |
| 10 | $ 54.33 | |||
| 25 | $ 53.17 | |||
| 50 | $ 52.30 | |||
| 100 | $ 51.45 | |||
| 250 | $ 42.58 | |||
Description
General part information
TEN 25 Series
Isolated DC/DC Converters - Through Hole
