Technical Specifications
Parameters and characteristics for this part
| Specification | ACPS-GB |
|---|---|
| Actual Diameter [diameter] | 0.249 in |
| Actual Diameter [diameter] | 6.32 mm |
| Body Color | Silver, Black |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Zinc Alloy |
| Includes | 1 Connector, 1 Insulator Tube, 1 Handle |
| Internal Switch(s) | False |
| Mating Length/Depth | 30.6 mm |
| Mating Length/Depth | 1.2 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder Eyelet(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.76 | |
| 10 | $ 5.18 | |||
| 25 | $ 4.67 | |||
| 50 | $ 4.33 | |||
| 100 | $ 4.02 | |||
| 250 | $ 3.66 | |||
| 500 | $ 3.45 | |||
Description
General part information
ACPS Series

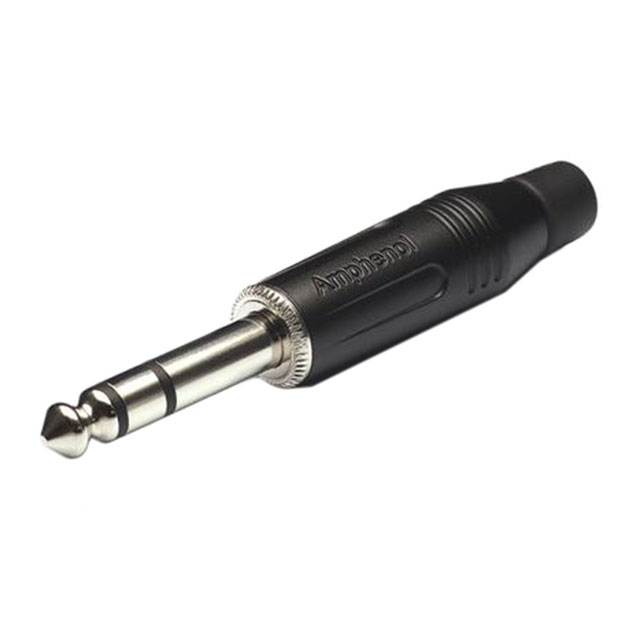

6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
