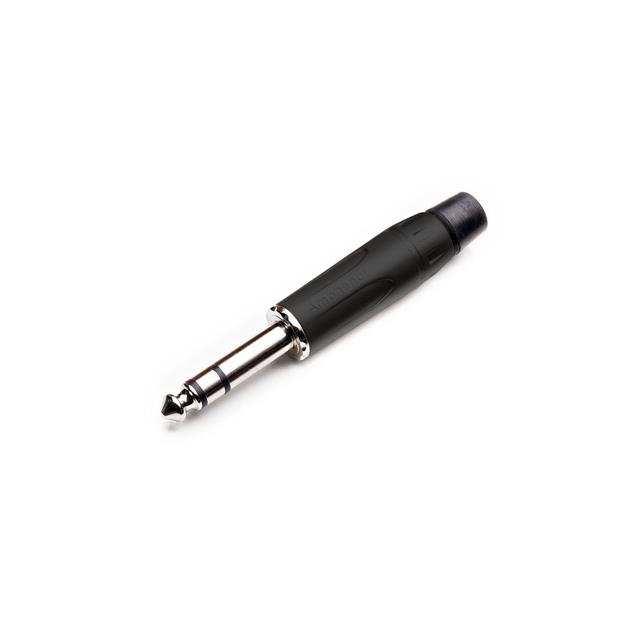

ACPS-KB

Active

AMPHENOL AUDIO

1/4" K SERIES PHONE STR STEREO N

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

1/4" K SERIES PHONE STR STEREO N

Technical Specifications

Parameters and characteristics for this part

Specification	ACPS-KB

Actual Diameter [diameter]	0.249 in
Actual Diameter [diameter]	6.32 mm
Body Color	Silver, Black
Connector Type	Phone Plug
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Zinc Alloy
Internal Switch(s)	False
Mating Length/Depth	1.19 in
Mating Length/Depth	30.3 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)

Part	Mating Length/Depth	Mating Length/Depth	Housing Material	Mounting Type	Includes	Body Color	Actual Diameter [diameter]	Actual Diameter [diameter]	Contact Material - Plating [custom]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Current Rating (Amps)	Shielding	Signal Lines	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Gender	Contact Material - Plating [custom]
AMPHENOL AUDIO ACPS-GB-AU	30.6 mm	1.2 in	Zinc Alloy	Free Hanging (In-Line)	1 Connector 1 Handle 1 Insulator Tube	Black Gold	0.249 in	6.32 mm	Gold	Brass	-25 °C	75 ░C	Solder Eyelet(s)	10 A	Shielded	Stereo	Phone Plug	3	3	Male
AMPHENOL AUDIO ACPS-KB	30.3 mm	1.19 in	Zinc Alloy	Free Hanging (In-Line)		Black Silver	0.249 in	6.32 mm		Brass	-25 °C	70 °C	Solder Eyelet(s)	10 A	Unshielded	Stereo	Phone Plug	3	3	Male	Nickel
AMPHENOL AUDIO ACPS-GB	30.6 mm	1.2 in	Zinc Alloy	Free Hanging (In-Line)	1 Connector 1 Handle 1 Insulator Tube	Black Silver	0.249 in	6.32 mm		Brass	-25 °C	75 ░C	Solder Eyelet(s)	10 A	Unshielded	Stereo	Phone Plug	3	3	Male	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 4.53

General part information

6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
