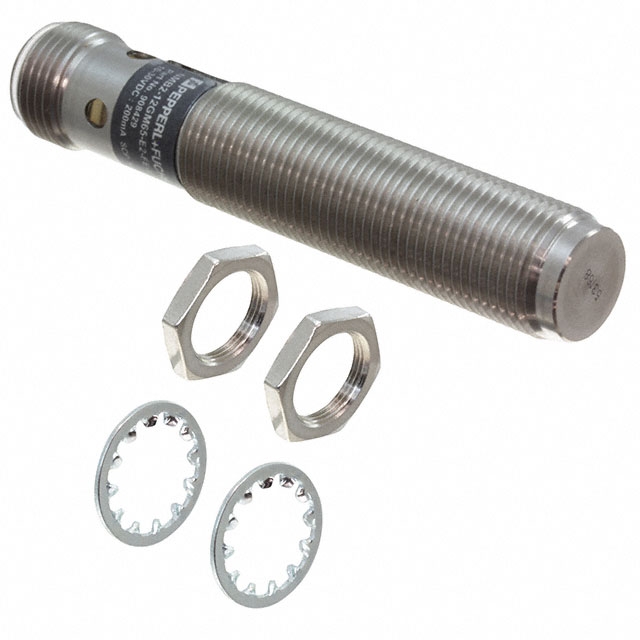

NMB2-12GM65-E2-FE-V1

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, 2 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

NMB2-12GM65-E2-FE-V1

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, 2 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, CONNECTOR

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NMB2-12GM65-E2-FE-V1

Indicator [custom]	LED
Ingress Protection	IP69K, IP68, IP67
Material - Body	Stainless Steel
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M12
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

NMB2-12 Series

Part	Indicator [custom]	Material - Body	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Output Type	Termination Style	Sensor Type	Sensing Distance	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection
PEPPERL+FUCHS NMB2-12GM40-Z3-C-FE-300MM-V1	LED	Stainless Steel	Cylinder Threaded - M12	70 °C	-25 °C	Unshielded	SCR-NO 2-Wire	Cable with Connector	Inductive	0.079 in	2 mm	6 V	30 VDC	IP67 IP68 IP69K
PEPPERL+FUCHS NMB2-12GM65-E2-C-FE-V1	LED	Stainless Steel	Cylinder Threaded - M12	70 °C	-25 °C	Unshielded	PNP-NO 3-Wire	Connector	Inductive	0.079 in	2 mm	10 VDC	30 VDC	IP67 IP68 IP69K
PEPPERL+FUCHS NMB2-12GM65-E2-FE-V1	LED	Stainless Steel	Cylinder Threaded - M12	70 °C	-40 °C	Unshielded	PNP-NO 3-Wire	Connector	Inductive	0.079 in	2 mm	10 VDC	30 VDC	IP67 IP68 IP69K
PEPPERL+FUCHS NMB2-12GM85-US-FE-V12	LED	Stainless Steel	Cylinder Threaded - M12	70 °C	-25 °C	Unshielded	SCR-NO 2-Wire	Connector	Inductive	0.079 in	2 mm	20 VDC 20 VAC	250 VAC 300 VDC	IP67 IP68 IP69K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 131.57
		10	$ 119.24
		25	$ 115.13
Newark	Each	1	$ 163.09
		10	$ 148.42
		25	$ 143.52

Description

General part information

NMB2-12 Series

The NMB2-12GM65-E2-FE-V1 is an Inductive Proximity Sensor that is the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery equipment. Pepperl+Fuchs offers innovative, high quality inductive sensor to meet the needs of the worldwide automation and process control markets. Standard inductive sensor features smooth or threaded stainless housings, polarity reversal and short-circuit protected, LED status indication.
