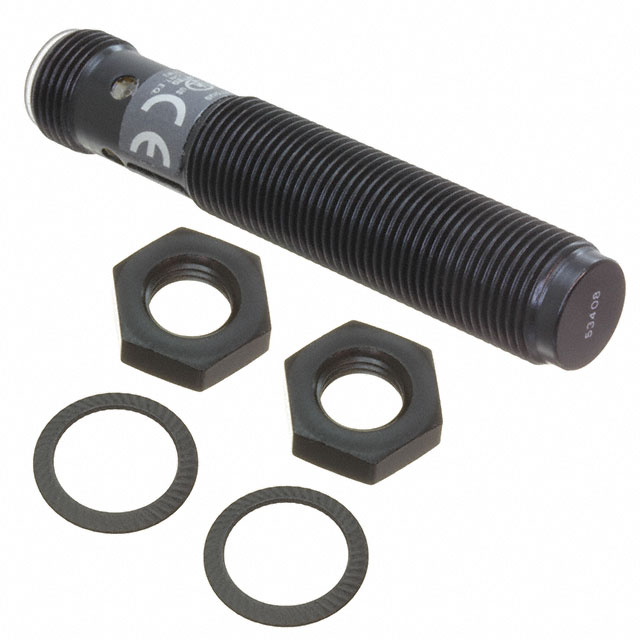

NMB2-12GM65-E2-C-FE-V1

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, 2 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, CONNECTOR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, 2 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Part	Indicator [custom]	Material - Body	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Output Type	Termination Style	Sensor Type	Sensing Distance	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection
PEPPERL+FUCHS NMB2-12GM40-Z3-C-FE-300MM-V1	LED	Stainless Steel	Cylinder Threaded - M12	70 °C	-25 °C	Unshielded	SCR-NO 2-Wire	Cable with Connector	Inductive	0.079 in	2 mm	6 V	30 VDC	IP67 IP68 IP69K
PEPPERL+FUCHS NMB2-12GM65-E2-C-FE-V1	LED	Stainless Steel	Cylinder Threaded - M12	70 °C	-25 °C	Unshielded	PNP-NO 3-Wire	Connector	Inductive	0.079 in	2 mm	10 VDC	30 VDC	IP67 IP68 IP69K
PEPPERL+FUCHS NMB2-12GM65-E2-FE-V1	LED	Stainless Steel	Cylinder Threaded - M12	70 °C	-40 °C	Unshielded	PNP-NO 3-Wire	Connector	Inductive	0.079 in	2 mm	10 VDC	30 VDC	IP67 IP68 IP69K
PEPPERL+FUCHS NMB2-12GM85-US-FE-V12	LED	Stainless Steel	Cylinder Threaded - M12	70 °C	-25 °C	Unshielded	SCR-NO 2-Wire	Connector	Inductive	0.079 in	2 mm	20 VDC 20 VAC	250 VAC 300 VDC	IP67 IP68 IP69K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE PROXIMITY SENSOR, 2 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, CONNECTOR
