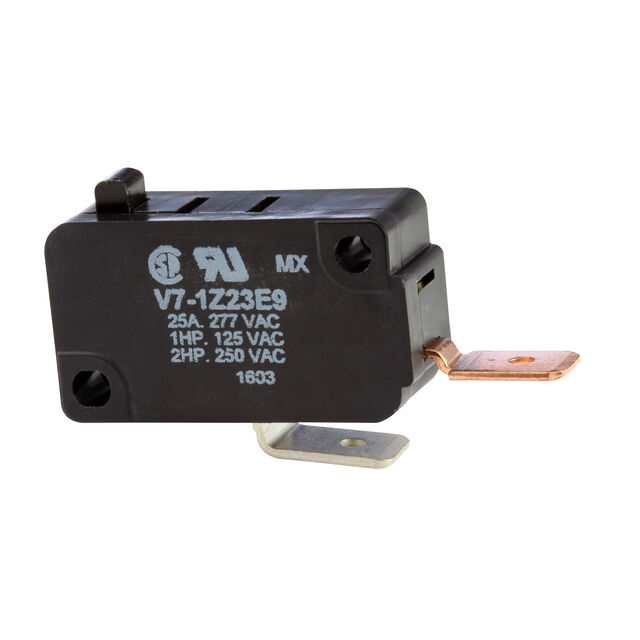

V7-1Z23E9

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 25A 277V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 25A 277V

Technical Specifications

Parameters and characteristics for this part

Part	Release Force	Overtravel	Overtravel	Termination Style	Switch Function	Voltage Rating - AC	Pretravel	Pretravel	Mounting Type	Current Rating (Amps)	Electrical Life	Circuit	Differential Travel	Differential Travel	Mechanical Life	Actuator Type	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position	Operating Position	Operating Force [Min]	Operating Force [Max]
Honeywell Sensing and Productivity Solutions V7-1Z20E9	20 gf	1.27 mm	0.05 in	Quick Connect - 0.250" (6.3mm)	Off-Mom	277 V	0.047 in	1.2 mm	Chassis Mount	25 A	100000 Cycles	SPST-NO	0.25 mm	0.01 in	10000000 Cycles	Round (Pin Plunger)	225 gf	85 °C	-40 °C	0.579 in	14.7 mm
Honeywell Sensing and Productivity Solutions V7-1Z23E9	55 gf	1.27 mm	0.05 in	Quick Connect - 0.250" (6.3mm)	Off-Mom	277 V	0.047 in	1.2 mm	Chassis Mount	25 A	100000 Cycles	SPST-NO	0.25 mm	0.01 in	10000000 Cycles	Round (Pin Plunger)				0.579 in	14.7 mm	125 gf	225 gf
Honeywell Sensing and Productivity Solutions V7-1Z29D94	20 gf	1.27 mm	0.05 in	Quick Connect - 0.250" (6.3mm)	Off-Mom	277 V	0.047 in	1.2 mm	Chassis Mount	25 A	100000 Cycles	SPST-NO	0.25 mm	0.01 in	10000000 Cycles	Round (Pin Plunger)	225 gf	85 °C	-40 °C	0.579 in	14.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 8.64

General part information

Switch SPST-NO Chassis Mount
