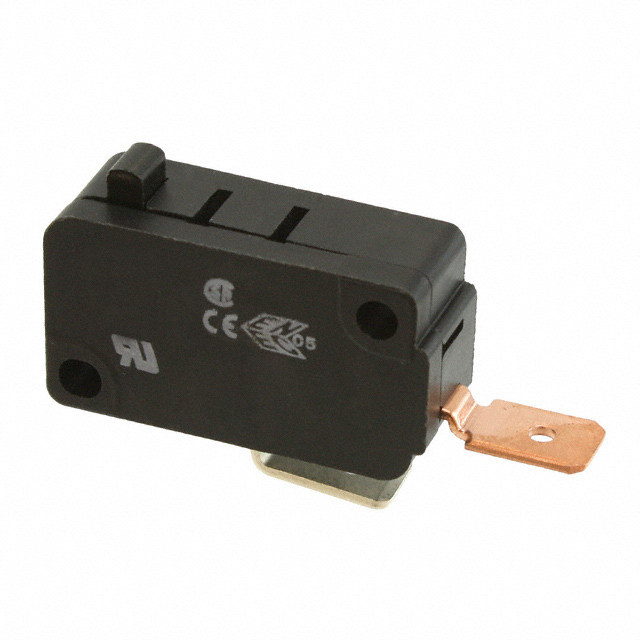

V7-1Z20E9
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 25A 277V
Deep-Dive with AI
Search across all available documentation for this part.
V7-1Z20E9
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 25A 277V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V7-1Z20E9 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 25 A |
| Differential Travel | 0.25 mm |
| Differential Travel | 0.01 in |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 225 gf |
| Operating Position | 0.579 in |
| Operating Position | 14.7 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 1.27 mm |
| Overtravel | 0.05 in |
| Pretravel | 0.047 in |
| Pretravel | 1.2 mm |
| Release Force | 20 gf |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 277 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.54 | |
| 10 | $ 6.25 | |||
| 25 | $ 5.80 | |||
| 50 | $ 5.48 | |||
| 100 | $ 5.18 | |||
| 250 | $ 4.80 | |||
| 500 | $ 4.54 | |||
| 1000 | $ 4.31 | |||
Description
General part information
V7-1Z2 Series
Switch SPST-NO Chassis Mount
