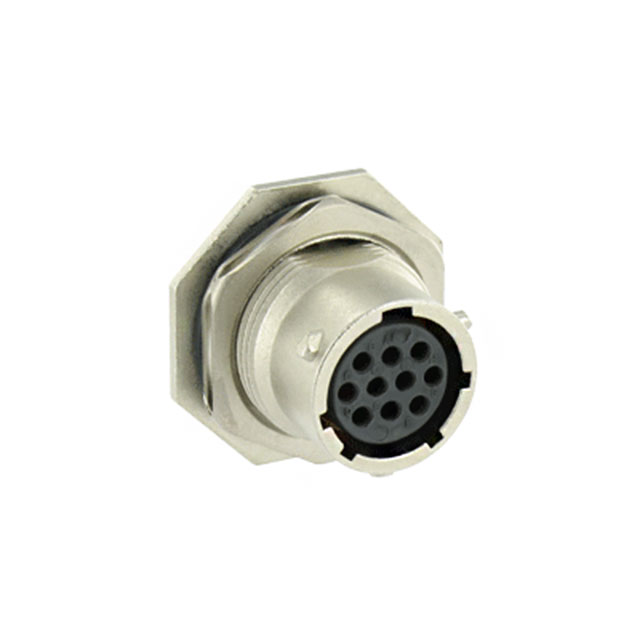

UT0W71210SH6
ActiveSOCKET HOUSING, JAM NUT 10 WAY; WAYS, NO. OF:10; CONNECTOR SHELL SIZE:12; FLAMMABILITY RATING:UL94V-0; IP RATING:IP67, IP68, IP69K; MATERIAL:ZINC ALLOY; MATERIAL, INSULATOR:GLASS FILLED THERMOPLAST; MATING CYCLES, NO. OF:500;
Deep-Dive with AI
Search across all available documentation for this part.
UT0W71210SH6
ActiveSOCKET HOUSING, JAM NUT 10 WAY; WAYS, NO. OF:10; CONNECTOR SHELL SIZE:12; FLAMMABILITY RATING:UL94V-0; IP RATING:IP67, IP68, IP69K; MATERIAL:ZINC ALLOY; MATERIAL, INSULATOR:GLASS FILLED THERMOPLAST; MATING CYCLES, NO. OF:500;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UT0W71210SH6 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Ingress Protection | IP68, IP69K |
| Insert Material | Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 32.08 | |
Description
General part information
UT0W7 Series
10 Position Circular Connector Receptacle Housing Panel Mount
