UT0W71626SH6

Active

Souriau-Sunbank by Eaton

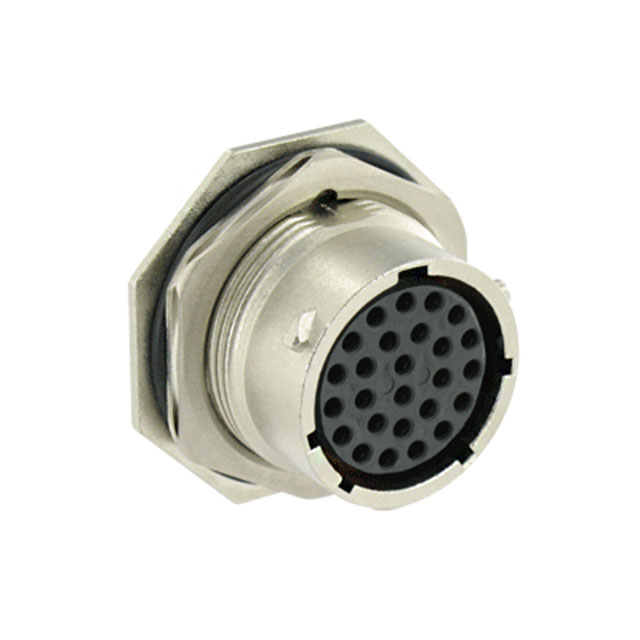

CONN RCPT HSG FMALE 26POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UT0W71626SH6

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 26POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT0W71626SH6

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP68, IP69K
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	26
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	16
Shielding	Shielded
Type	For Female Sockets

UT0W7 Series

Part	Contact Type	Insert Material	Shell Finish	Connector Type	Orientation	Contact Shape	Type	Contact Size	Material Flammability Rating	Number of Positions	Mounting Feature	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Housing Color	Ingress Protection	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Note	Fastening Type	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Shell Size - Insert
Souriau-Sunbank by Eaton UT0W72255SH	Crimp	Thermoplastic Glass Filled	Nickel	Receptacle Housing	N	Circular	For Female Sockets	20	UL94 V-0	55 positions	Bulkhead - Front Side Nut	Shielded	-40 °C	105 ░C	Zinc Alloy	Silver	IP67 IP69K	55	22	Contacts Not Included	Bayonet Lock
Souriau-Sunbank by Eaton UT0W71626SH6	Crimp	Thermoplastic Glass Filled	Nickel	Receptacle Housing	N	Circular	For Female Sockets	20	UL94 V-0	26	Bulkhead - Front Side Nut	Shielded	-40 °C	105 ░C	Zinc Alloy	Silver	IP68 IP69K	26	16	Contacts Not Included	Bayonet Lock
Souriau-Sunbank by Eaton UT0W71626SH	Crimp	Thermoplastic Glass Filled	Nickel	Receptacle Housing	N	Circular	For Female Sockets	20	UL94 V-0	26	Bulkhead - Front Side Nut	Shielded	-40 °C	105 ░C	Zinc Alloy	Silver	IP67 IP69K	26	16	Contacts Not Included	Bayonet Lock
Souriau-Sunbank by Eaton UT0W71210PH	Crimp	Thermoplastic Glass Filled	Nickel	Receptacle Housing	N	Circular	For Male Pins	20	UL94 V-0	10	Bulkhead - Front Side Nut	Shielded	-40 °C	105 ░C	Zinc Alloy	Silver	IP67 IP69K			Contacts Not Included	Bayonet Lock
Souriau-Sunbank by Eaton UT0W72041SH	Crimp	Thermoplastic Glass Filled	Nickel	Receptacle Housing	N	Circular	For Female Sockets	20	UL94 V-0	41	Bulkhead - Front Side Nut	Shielded	-40 °C	105 ░C	Zinc Alloy	Silver	IP67 IP69K	41	20	Contacts Not Included	Bayonet Lock
Souriau-Sunbank by Eaton UT0W71419SH6	Crimp	Thermoplastic Glass Filled	Nickel	Receptacle Housing	N	Circular	For Female Sockets	20	UL94 V-0	19	Bulkhead - Front Side Nut	Shielded	-40 °C	105 ░C	Zinc Alloy	Silver	IP68 IP69K			Contacts Not Included	Bayonet Lock	19	14
Souriau-Sunbank by Eaton UT0W72461SH6	Crimp	Thermoplastic Glass Filled	Nickel	Receptacle Housing	N	Circular	For Female Sockets	20	UL94 V-0	61	Bulkhead - Front Side Nut	Shielded	-40 °C	105 ░C	Zinc Alloy	Silver	IP68 IP69K	61	24	Contacts Not Included	Bayonet Lock
Souriau-Sunbank by Eaton UT0W7106PH6	Crimp	Thermoplastic Glass Filled	Nickel	Receptacle Housing	N	Circular	For Male Pins	20	UL94 V-0	6	Bulkhead - Front Side Nut	Shielded	-40 °C	105 ░C	Zinc Alloy	Silver	IP68 IP69K			Contacts Not Included	Bayonet Lock			10-6
Souriau-Sunbank by Eaton UT0W71419PH6	Crimp	Thermoplastic Glass Filled	Nickel	Receptacle Housing	N	Circular	For Male Pins	20	UL94 V-0	19	Bulkhead - Front Side Nut	Shielded	-40 °C	105 ░C	Zinc Alloy	Silver	IP68 IP69K			Contacts Not Included	Bayonet Lock	19	14
Souriau-Sunbank by Eaton UT0W71210SH6	Crimp	Thermoplastic Glass Filled	Nickel	Receptacle Housing	N	Circular	For Female Sockets	20	UL94 V-0	10	Bulkhead - Front Side Nut	Shielded	-40 °C	105 ░C	Zinc Alloy	Silver	IP68 IP69K			Contacts Not Included	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 33.52

Description

General part information

UT0W7 Series

26 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources
