0039039122

Active

Molex

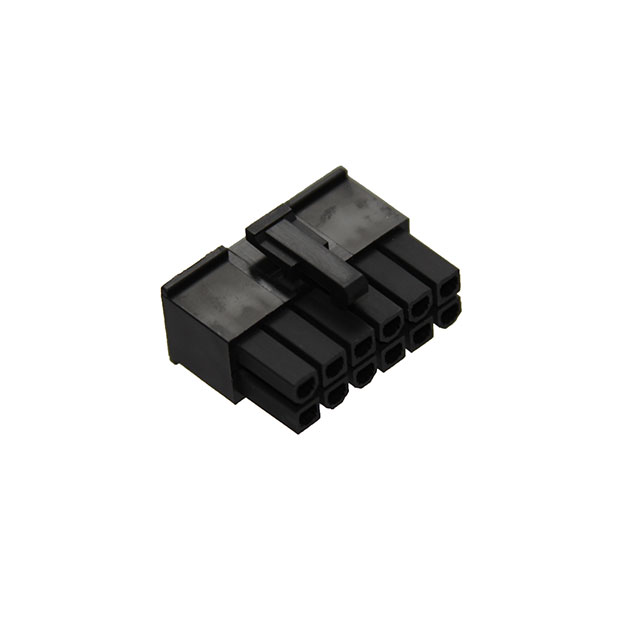

CONN RCPT HSG 12POS 4.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Moisturizing Nylon Connector Parts +1

0039039122

Active

Molex

CONN RCPT HSG 12POS 4.20MM

Deep-Dive with AI

DocumentsDatasheet Moisturizing Nylon Connector Parts +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0039039122

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Pitch [x]	4.2 mm
Pitch [x]	0.165 in
Row Spacing	4.2 mm
Row Spacing	0.165 in

003903 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Connector Type	Contact Type	Mounting Type	Contact Termination	Number of Rows	Color	Number of Positions	Note	Insulation Material	Fastening Type	Row Spacing	Row Spacing	Number of Positions
Molex 0039036042	-40 °C	105 ░C	0.264 in	6.7 mm	Plug	Male or Female	Free Hanging (In-Line)	Crimp	1	Natural	4	Contacts Not Included	Nylon Polyamide (PA)	Locking Ramp
Molex 0039039082			0.165 in	4.2 mm	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	2	Black	8	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Latch Lock	4.2 mm	0.165 in
Molex 0039036040	-40 °C	105 ░C	0.264 in	6.7 mm	Plug	Male or Female	Panel Mount Snap-In	Crimp	1	Natural	4	Contacts Not Included	Nylon Polyamide (PA)	Locking Ramp
Molex 0039036044	-40 °C	105 ░C	0.264 in	6.7 mm	Receptacle	Male or Female	Free Hanging (In-Line)	Crimp	1	Natural	4	Contacts Not Included	Nylon Polyamide (PA)	Latch Lock
Molex 0039036032	-40 °C	105 ░C	0.264 in	6.7 mm	Plug	Male or Female	Free Hanging (In-Line)	Crimp	1	Natural		Contacts Not Included	Nylon Polyamide (PA)	Locking Ramp
Molex 0039036060	-40 °C	105 ░C	0.264 in	6.7 mm	Plug	Male or Female	Panel Mount Snap-In	Crimp	2	Natural	6	Contacts Not Included	Nylon Polyamide (PA)	Locking Ramp
Molex 0039039162			0.165 in	4.2 mm	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	2	Black		Contacts Not Included	Polyamide (PA66) Nylon 6/6	Latch Lock	4.2 mm	0.165 in	16
Molex 0039039142			0.165 in	4.2 mm	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	2	Black	14	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Latch Lock	4.2 mm	0.165 in
Molex 0039039062	-40 °C	105 ░C	0.165 in	4.2 mm	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	2	Black	6	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Latch Lock	4.2 mm	0.165 in
Molex 0039039122			0.165 in	4.2 mm	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	2	Black	12	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Latch Lock	4.2 mm	0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.67
		10	$ 0.56
		80	$ 0.44
		2000	$ 0.33
		4000	$ 0.31

0039039122

Deep-Dive with AI

0039039122

Deep-Dive with AI

Technical Specifications

003903 Series

Pricing

Description

003903 Series

Documents

Datasheet

Moisturizing Nylon Connector Parts

Mini-Fit Jr Color Variation Spec

003903 Series
