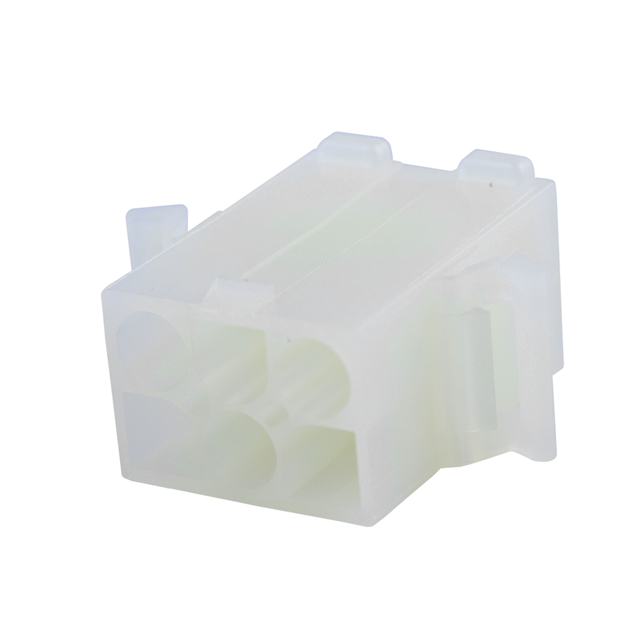

0039036060

Active

Molex

CONN PLUG HSG 6POS 6.70MM

Deep-Dive with AI

Search across all available documentation for this part.

0039036060

Active

Molex

CONN PLUG HSG 6POS 6.70MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0039036060

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male or Female
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.264 in
Pitch [x]	6.7 mm

003903 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Connector Type	Contact Type	Mounting Type	Contact Termination	Number of Rows	Color	Number of Positions	Note	Insulation Material	Fastening Type	Row Spacing	Row Spacing	Number of Positions
Molex 0039036042	-40 °C	105 ░C	0.264 in	6.7 mm	Plug	Male or Female	Free Hanging (In-Line)	Crimp	1	Natural	4	Contacts Not Included	Nylon Polyamide (PA)	Locking Ramp
Molex 0039039082			0.165 in	4.2 mm	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	2	Black	8	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Latch Lock	4.2 mm	0.165 in
Molex 0039036040	-40 °C	105 ░C	0.264 in	6.7 mm	Plug	Male or Female	Panel Mount Snap-In	Crimp	1	Natural	4	Contacts Not Included	Nylon Polyamide (PA)	Locking Ramp
Molex 0039036044	-40 °C	105 ░C	0.264 in	6.7 mm	Receptacle	Male or Female	Free Hanging (In-Line)	Crimp	1	Natural	4	Contacts Not Included	Nylon Polyamide (PA)	Latch Lock
Molex 0039036032	-40 °C	105 ░C	0.264 in	6.7 mm	Plug	Male or Female	Free Hanging (In-Line)	Crimp	1	Natural		Contacts Not Included	Nylon Polyamide (PA)	Locking Ramp
Molex 0039036060	-40 °C	105 ░C	0.264 in	6.7 mm	Plug	Male or Female	Panel Mount Snap-In	Crimp	2	Natural	6	Contacts Not Included	Nylon Polyamide (PA)	Locking Ramp
Molex 0039039162			0.165 in	4.2 mm	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	2	Black		Contacts Not Included	Polyamide (PA66) Nylon 6/6	Latch Lock	4.2 mm	0.165 in	16
Molex 0039039142			0.165 in	4.2 mm	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	2	Black	14	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Latch Lock	4.2 mm	0.165 in
Molex 0039039062	-40 °C	105 ░C	0.165 in	4.2 mm	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	2	Black	6	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Latch Lock	4.2 mm	0.165 in
Molex 0039039122			0.165 in	4.2 mm	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	2	Black	12	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Latch Lock	4.2 mm	0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.32
		10	$ 0.27
		200	$ 0.21
		1000	$ 0.17

Description

General part information

003903 Series

6 Rectangular Connectors - Housings Plug Natural 0.264" (6.70mm)
