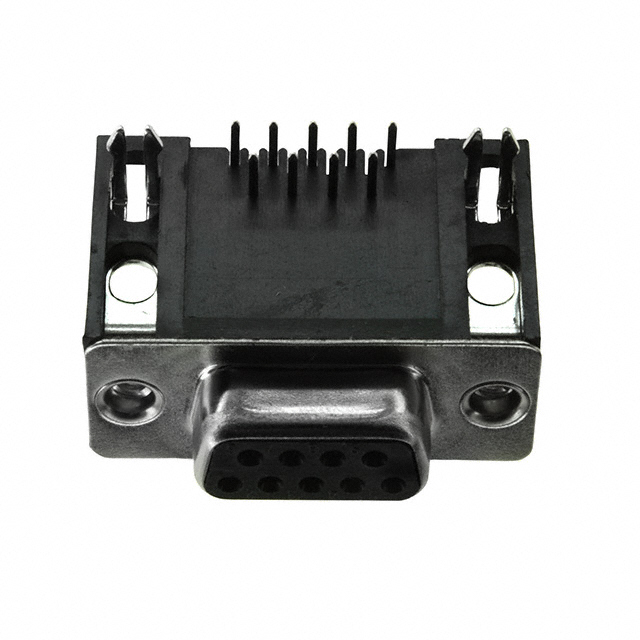

183-009-213R571
ActiveMH Connectors
CONN DB9 FEML .590 R/A MET SHELL
Deep-Dive with AI
Search across all available documentation for this part.
183-009-213R571
ActiveMH Connectors
CONN DB9 FEML .590 R/A MET SHELL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 183-009-213R571 |
|---|---|
| Backset Spacing | 0.59 " |
| Backset Spacing | 14.99 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
183-009 Series
| Part | Number of Positions | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish | Connector Style | Flange Feature | Color | Connector Type | Dielectric Material | Backset Spacing | Backset Spacing | Features | Termination | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Contact Finish Thickness | Number of Rows | Contact Material | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 9 | 5 A | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | Gold | D-Sub | Female Screwlock (4-40) Mating Side | Black | Receptacle Female Sockets | Polyester Glass Filled | 0.59 " | 14.99 mm | Ground Strap | Solder | Signal | DE E | 1 | UL94 V-0 | Flash | 2 | ||
MH Connectors | 9 | 5 A | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | Gold | D-Sub | Housing/Shell (4-40) | Black | Receptacle Female Sockets | Polyester Glass Filled | 0.59 " | 14.99 mm | Solder | Signal | DE E | 1 | UL94 V-0 | Flash | 2 | |||
MH Connectors | 9 | 5 A | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | Gold | D-Sub | Housing/Shell (4-40) | Black | Male Pins Plug | Polyamide (PA9T) Nylon 9T | 0.59 " | 14.99 mm | Ground Strap Grounding Indents | Solder | Signal | DE E | 1 | UL94 V-0 | Flash | 2 | Brass | Nickel Plated Steel |
MH Connectors | 9 | 5 A | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | Gold | D-Sub | Housing/Shell (4-40) | Black | Male Pins Plug | Polyester Glass Filled | 0.59 " | 14.99 mm | Board Lock Grounding Indents | Solder | Signal | DE E | 1 | UL94 V-0 | Flash | 2 | ||
MH Connectors | 9 | 5 A | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | Gold | D-Sub | Female Screwlock (4-40) Mating Side | Black | Male Pins Plug | Polyamide (PA9T) Nylon 9T | 0.59 " | 14.99 mm | Board Lock Grounding Indents | Solder | Signal | DE E | 1 | UL94 V-0 | Flash | 2 | Brass | Nickel Plated Steel |
MH Connectors | 9 | 5 A | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | Gold | D-Sub | Housing/Shell (4-40) | Black | Receptacle Female Sockets | Polyamide (PA9T) Nylon 9T | 0.59 " | 14.99 mm | Solder | Signal | DE E | 1 | UL94 V-0 | Flash | 2 | Brass | Nickel Plated Steel | |
MH Connectors | 9 | 5 A | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | Gold | D-Sub | Female Screwlock (4-40) Mating Side | Black | Receptacle Female Sockets | Polyamide (PA9T) Nylon 9T | 0.59 " | 14.99 mm | Ground Strap | Solder | Signal | DE E | 1 | UL94 V-0 | Flash | 2 | Brass | Nickel Plated Steel |
MH Connectors | 9 | 5 A | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | Gold | D-Sub | Housing/Shell (Unthreaded) | Black | Male Pins Plug | Polyamide (PA9T) Nylon 9T | 0.59 " | 14.99 mm | Ground Strap Grounding Indents | Solder | Signal | DE E | 1 | UL94 V-0 | Flash | 2 | Brass | Nickel Plated Steel |
MH Connectors | 9 | 5 A | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | Gold | D-Sub | Female Screwlock (4-40) Mating Side | Black | Receptacle Female Sockets | Polyamide (PA9T) Nylon 9T | 0.59 " | 14.99 mm | Solder | Signal | DE E | 1 | UL94 V-0 | Flash | 2 | Brass | Nickel Plated Steel | |
MH Connectors | 9 | 5 A | 105 ░C | -55 °C | Panel Mount Right Angle Through Hole | Gold | D-Sub | Female Screwlock (4-40) Mating Side | Black | Receptacle Female Sockets | Polyester Glass Filled | 0.59 " | 14.99 mm | Solder | Signal | DE E | 1 | UL94 V-0 | Flash | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
183-009 Series
9 Position D-Sub Receptacle, Female Sockets Connector
Documents
Technical documentation and resources
