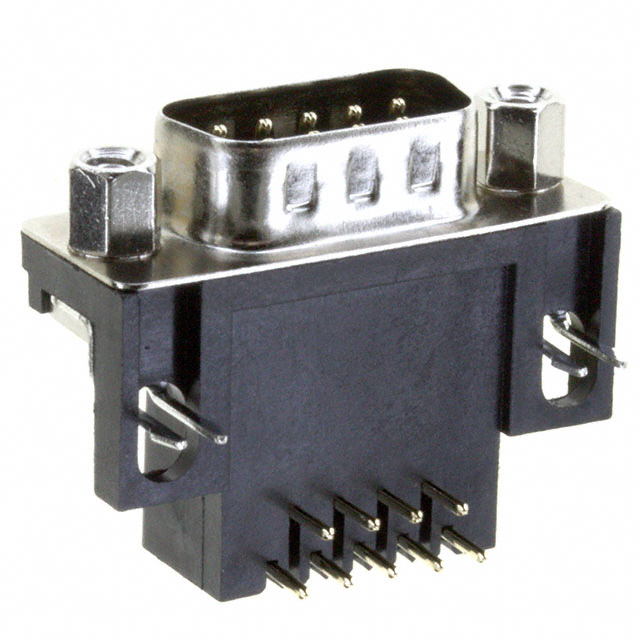

183-009-113R561

Active

MH Connectors

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsWhite Papers EN Datasheet

183-009-113R561

Active

MH Connectors

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsWhite Papers EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	183-009-113R561

Backset Spacing	0.59 "
Backset Spacing	14.99 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

183-009 Series

Part	Number of Positions	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish	Connector Style	Flange Feature	Color	Connector Type	Dielectric Material	Backset Spacing	Backset Spacing	Features	Termination	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Material Flammability Rating	Contact Finish Thickness	Number of Rows	Contact Material	Shell Material, Finish
MH Connectors 183-009-212-181	9	5 A	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	Gold	D-Sub	Female Screwlock (4-40) Mating Side	Black	Receptacle Female Sockets	Polyester Glass Filled	0.59 "	14.99 mm	Ground Strap	Solder	Signal	DE E	1	UL94 V-0	Flash	2
MH Connectors 183-009-212-451	9	5 A	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	Gold	D-Sub	Housing/Shell (4-40)	Black	Receptacle Female Sockets	Polyester Glass Filled	0.59 "	14.99 mm		Solder	Signal	DE E	1	UL94 V-0	Flash	2
MH Connectors 183-009-113R171	9	5 A	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	Gold	D-Sub	Housing/Shell (4-40)	Black	Male Pins Plug	Polyamide (PA9T) Nylon 9T	0.59 "	14.99 mm	Ground Strap Grounding Indents	Solder	Signal	DE E	1	UL94 V-0	Flash	2	Brass	Nickel Plated Steel
MH Connectors 183-009-112-531	9	5 A	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	Gold	D-Sub	Housing/Shell (4-40)	Black	Male Pins Plug	Polyester Glass Filled	0.59 "	14.99 mm	Board Lock Grounding Indents	Solder	Signal	DE E	1	UL94 V-0	Flash	2
MH Connectors 183-009-113R561	9	5 A	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	Gold	D-Sub	Female Screwlock (4-40) Mating Side	Black	Male Pins Plug	Polyamide (PA9T) Nylon 9T	0.59 "	14.99 mm	Board Lock Grounding Indents	Solder	Signal	DE E	1	UL94 V-0	Flash	2	Brass	Nickel Plated Steel
MH Connectors 183-009-213R571	9	5 A	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	Gold	D-Sub	Housing/Shell (4-40)	Black	Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	0.59 "	14.99 mm		Solder	Signal	DE E	1	UL94 V-0	Flash	2	Brass	Nickel Plated Steel
MH Connectors 183-009-213R181	9	5 A	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	Gold	D-Sub	Female Screwlock (4-40) Mating Side	Black	Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	0.59 "	14.99 mm	Ground Strap	Solder	Signal	DE E	1	UL94 V-0	Flash	2	Brass	Nickel Plated Steel
MH Connectors 183-009-113R161	9	5 A	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	Gold	D-Sub	Housing/Shell (Unthreaded)	Black	Male Pins Plug	Polyamide (PA9T) Nylon 9T	0.59 "	14.99 mm	Ground Strap Grounding Indents	Solder	Signal	DE E	1	UL94 V-0	Flash	2	Brass	Nickel Plated Steel
MH Connectors 183-009-213R541	9	5 A	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	Gold	D-Sub	Female Screwlock (4-40) Mating Side	Black	Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	0.59 "	14.99 mm		Solder	Signal	DE E	1	UL94 V-0	Flash	2	Brass	Nickel Plated Steel
MH Connectors 183-009-212-561	9	5 A	105 ░C	-55 °C	Panel Mount Right Angle Through Hole	Gold	D-Sub	Female Screwlock (4-40) Mating Side	Black	Receptacle Female Sockets	Polyester Glass Filled	0.59 "	14.99 mm		Solder	Signal	DE E	1	UL94 V-0	Flash	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.57
		10	$ 3.24
		25	$ 3.07
		40	$ 3.00
		90	$ 2.85
		270	$ 2.51
Newark	Each	500	$ 3.68
		1000	$ 3.46

Description

General part information

183-009 Series

9 Position D-Sub Plug, Male Pins Connector
