EVB_RT8086BGQUF

Active

Richtek USA Inc.

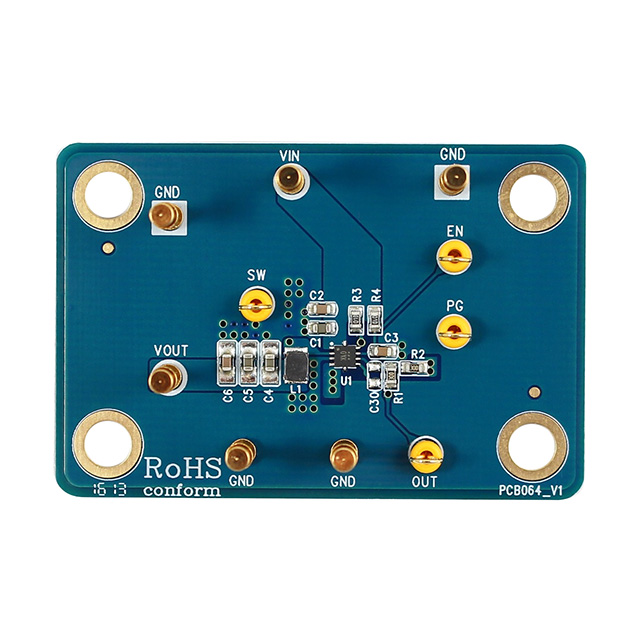

EVAL MODULE FOR RT8086BGQUF

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT8086BGQUF

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Function	Frequency - Switching	Package / Case	Output Type	Current - Output	Supplier Device Package	Topology	Output Configuration	Synchronous Rectifier	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Voltage - Output	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Utilized IC / Part
Richtek USA Inc. RT8086BGQUF	Surface Mount	0.6 V	3.3 V	2.8 V	5.5 V	Step-Down	1.2 MHz	12-PowerUFQFN	Adjustable	3.5 A	12-UQFN (2x2)	Buck	Positive		85 °C	-40 °C	1
Richtek USA Inc. EVB_RT8086BGQUF							1.2 MHz			3.5 A								DC/DC Step Down	2.8 V	5.5 V	Buck	1.2 V	Board(s)	Non-Isolated	1	Fully Populated	RT8086B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.19

General part information

RT8086B - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
