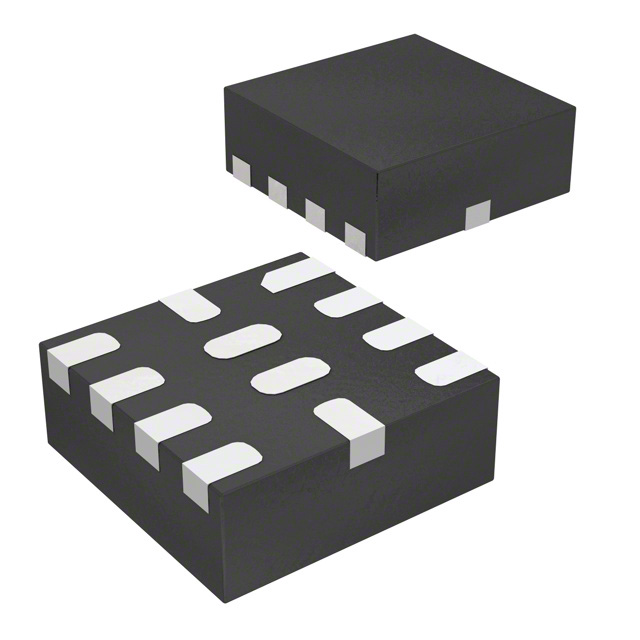

RT8086BGQUF
ActiveRichtek USA Inc.
IC REG BUCK ADJ 3.5A 12UQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT8086BGQUF
ActiveRichtek USA Inc.
IC REG BUCK ADJ 3.5A 12UQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT8086BGQUF |
|---|---|
| Current - Output | 3.5 A |
| Frequency - Switching | 1.2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 12-PowerUFQFN |
| Supplier Device Package | 12-UQFN (2x2) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.8 V |
| Voltage - Output (Max) [Max] | 3.3 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.16 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.53 | |||
| Digi-Reel® | 1 | $ 1.16 | ||
| 10 | $ 1.04 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.53 | |||
| Tape & Reel (TR) | 2500 | $ 0.49 | ||
| 5000 | $ 0.47 | |||
| 12500 | $ 0.45 | |||
Description
General part information
RT8086 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3.5A 12-PowerUFQFN
