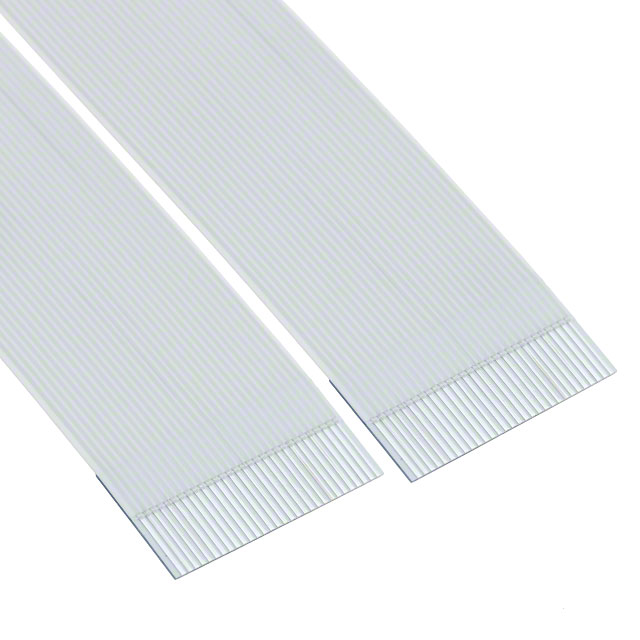

0152660321

Active

Molex

CABLE FFC/FPC 30POS 0.5MM 4"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 30POS 0.5MM 4"

Technical Specifications

Parameters and characteristics for this part

Specification	0152660321

Cable Type	FPC, FFC
Length	4 in
Length	101.6 mm
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Number of Conductors	30
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

...

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Length	Length	Number of Conductors	Pitch [x]	Pitch [x]	Cable Type
Molex 0152660061	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	152.4 mm	6 in	6	0.5 mm	0.02 in	FFC FPC
Molex 0152660310	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	228.6 mm	9 "	28	0.5 mm	0.02 in	FFC FPC
Molex 0152660264	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	203.2 mm	8 in	24	0.5 mm	0.02 in	FFC FPC
Molex 0152660385	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	76.2 mm	3 in	36	0.5 mm	0.02 in	FFC FPC
Molex 0152661064	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	177.8 mm	7 in	35	0.5 mm	0.02 in	FFC FPC
Molex 0152660088	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	203.2 mm	8 in	8	0.5 mm	0.02 in	FFC FPC
Molex 0152660208	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	50.8 mm	2 in	20	0.5 mm	0.02 in	FFC FPC
Molex 0152660321	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	101.6 mm	4 in	30	0.5 mm	0.02 in	FFC FPC
Molex 0152661075
Molex 0152660537	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	50.8 mm	2 in	50	0.5 mm	0.02 in	FFC FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position FFC, FPC Cable 0.020" (0.50mm) 4.000" (101.60mm)

Technical documentation and resources
