0152660061

Active

Molex

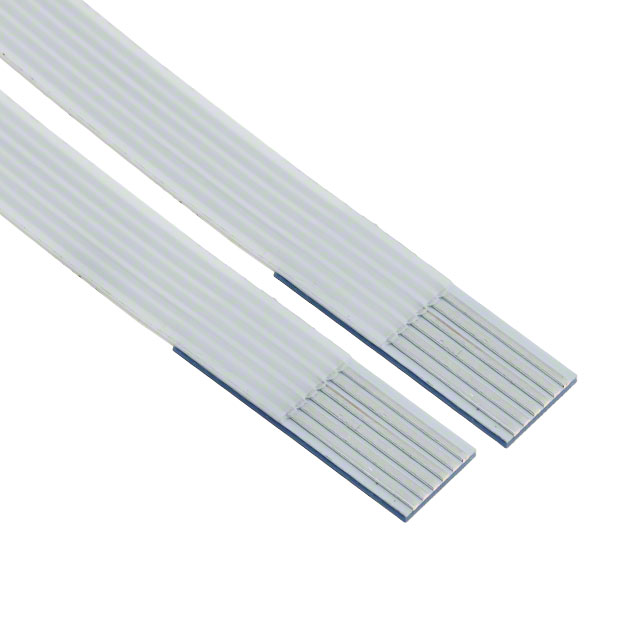

CABLE FFC/FPC 6POS 0.5MM 6"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 6POS 0.5MM 6"

Technical Specifications

Parameters and characteristics for this part

Specification	0152660061

Cable Type	FPC, FFC
Length	152.4 mm
Length	6 in
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Number of Conductors	6
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

...

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Length	Length	Number of Conductors	Pitch [x]	Pitch [x]	Cable Type
Molex 0152660061	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	152.4 mm	6 in	6	0.5 mm	0.02 in	FFC FPC
Molex 0152660310	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	228.6 mm	9 "	28	0.5 mm	0.02 in	FFC FPC
Molex 0152660264	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	203.2 mm	8 in	24	0.5 mm	0.02 in	FFC FPC
Molex 0152660385	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	76.2 mm	3 in	36	0.5 mm	0.02 in	FFC FPC
Molex 0152661064	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	177.8 mm	7 in	35	0.5 mm	0.02 in	FFC FPC
Molex 0152660088	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	203.2 mm	8 in	8	0.5 mm	0.02 in	FFC FPC
Molex 0152660208	4 mm	0.157 in	Top on One Side Bottom on Other Backers on Both Sides	50.8 mm	2 in	20	0.5 mm	0.02 in	FFC FPC
Molex 0152660321	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	101.6 mm	4 in	30	0.5 mm	0.02 in	FFC FPC
Molex 0152661075
Molex 0152660537	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	50.8 mm	2 in	50	0.5 mm	0.02 in	FFC FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position FFC, FPC Cable 0.020" (0.50mm) 6.000" (152.40mm)
