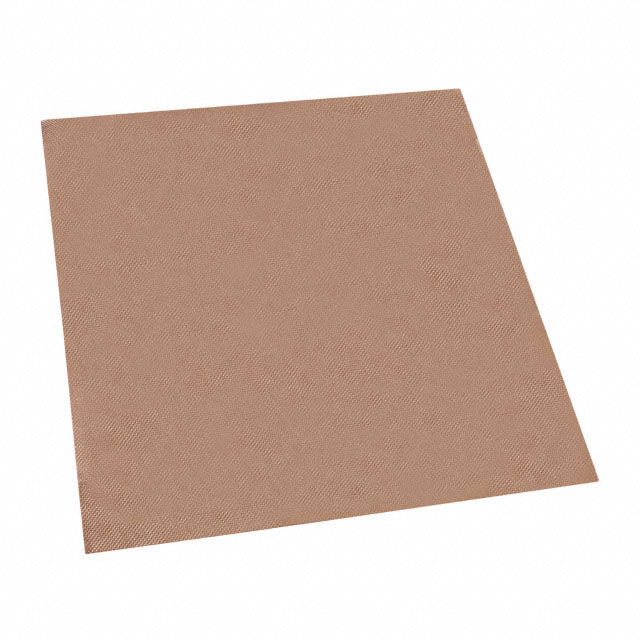

1245-11.5-12(6)

Active

3M (TC)

RF EMI SHLDING SHEET 12" X 11.5"

Search across all available documentation for this part.

Active

3M (TC)

RF EMI SHLDING SHEET 12" X 11.5"

Technical Specifications

Parameters and characteristics for this part

Specification	1245-11.5-12(6)

Adhesive	Single Sided, Non-Conductive
Material	Embossed Copper Foil
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall [custom]	0.004 "
Thickness - Overall [custom]	0.1 mm
Type	Shielding Sheet
Width [x]	292 mm
Width [x]	11.5 in

Part	Shelf Life	Material	Thickness - Overall [custom]	Thickness - Overall [custom]	Width [x]	Width [x]	Type	Shelf Life Start	Adhesive	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Thickness - Overall	Thickness - Overall	Operating Temperature [Min]	Operating Temperature [Max]
3M (TC) 1245-11.5-12(6)	60 Months	Embossed Copper Foil	0.004 "	0.1 mm	292 mm	11.5 in	Shielding Sheet	Date of Manufacture	Non-Conductive Single Sided	27 °C 80 °F	10 °C
3M (TC) 1120-11.5-12(6)		Aluminum Foil	0.004 "	0.1 mm	292 mm	11.5 in	Shielding Sheet		Conductive Single Sided
3M (TC) 1182-11.5-12(6)		Copper Foil			292 mm	11.5 in	Shielding Sheet		Conductive Double Sided			0.09 mm	0.004 in
3M (TC) 11.5X12-6-1345	60 Months	Embossed Tin-Plated Copper Foil	0.004 "	0.1 mm	292 mm	11.5 in	Shielding Sheet	Date of Manufacture	Conductive Single Sided	27 °C 80 °F	10 °C			-40 °C	130 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Sheet 1245 Embossed Copper Foil Non-Conductive, Single Sided 11.500" (292.00mm) X 12.000" (304.80mm) X 0.004" (0.10mm)
