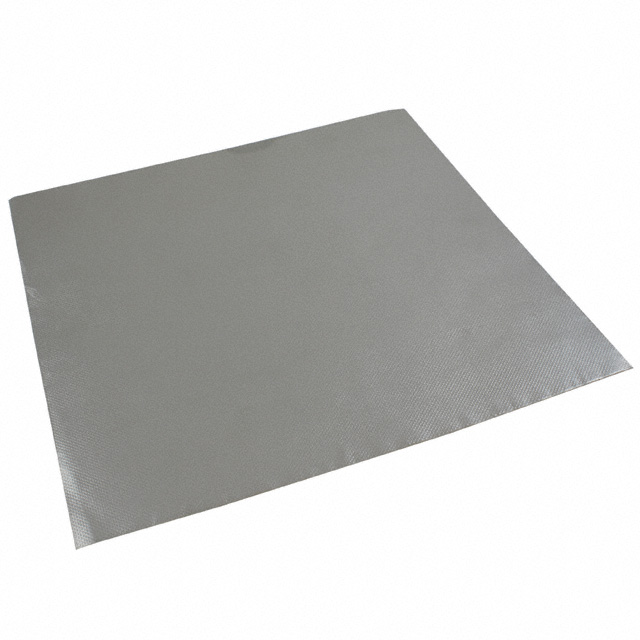

11.5X12-6-1345

Active

3M (TC)

RF SHLDING SHEET 12"X11.5" 6PK

Search across all available documentation for this part.

Active

3M (TC)

RF SHLDING SHEET 12"X11.5" 6PK

Technical Specifications

Parameters and characteristics for this part

Specification	11.5X12-6-1345

Adhesive	Conductive, Single Sided
Material	Embossed Tin-Plated Copper Foil
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall [custom]	0.004 "
Thickness - Overall [custom]	0.1 mm
Type	Shielding Sheet
Width [x]	292 mm
Width [x]	11.5 in

Part	Shelf Life	Material	Thickness - Overall [custom]	Thickness - Overall [custom]	Width [x]	Width [x]	Type	Shelf Life Start	Adhesive	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Thickness - Overall	Thickness - Overall	Operating Temperature [Min]	Operating Temperature [Max]
3M (TC) 1245-11.5-12(6)	60 Months	Embossed Copper Foil	0.004 "	0.1 mm	292 mm	11.5 in	Shielding Sheet	Date of Manufacture	Non-Conductive Single Sided	27 °C 80 °F	10 °C
3M (TC) 1120-11.5-12(6)		Aluminum Foil	0.004 "	0.1 mm	292 mm	11.5 in	Shielding Sheet		Conductive Single Sided
3M (TC) 1182-11.5-12(6)		Copper Foil			292 mm	11.5 in	Shielding Sheet		Conductive Double Sided			0.09 mm	0.004 in
3M (TC) 11.5X12-6-1345	60 Months	Embossed Tin-Plated Copper Foil	0.004 "	0.1 mm	292 mm	11.5 in	Shielding Sheet	Date of Manufacture	Conductive Single Sided	27 °C 80 °F	10 °C			-40 °C	130 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Sheet 1345 Embossed Tin-Plated Copper Foil Conductive, Single Sided 11.500" (292.00mm) X 12.000" (304.80mm) X 0.004" (0.10mm)
