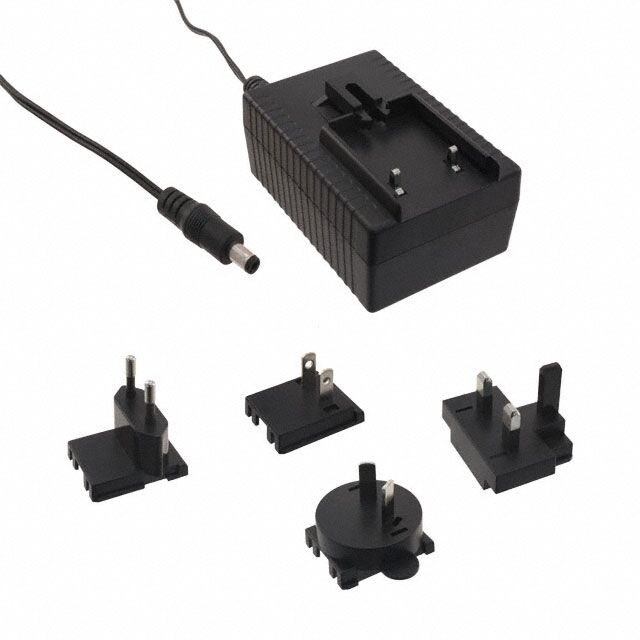

KTPS36-120300MP-VI-P2-NA
ActiveVolgen + Furuno
AC/DC WALL MOUNT ADAPTER 12V 36W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KTPS36-120300MP-VI-P2-NA
ActiveVolgen + Furuno
AC/DC WALL MOUNT ADAPTER 12V 36W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KTPS36-120300MP-VI-P2-NA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | RCM, UL, cUL, CB, CE, GS, PSE |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Multi-Blade, Fixed Blade |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 36 W |
| Region Utilized | International |
| Size / Dimension [x] | 79 mm |
| Size / Dimension [x] | 3.11 in |
| Size / Dimension [y] | 1.38 " |
| Size / Dimension [y] | 35 mm |
| Size / Dimension [z] | 2.6 in |
| Size / Dimension [z] | 66 mm |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 12 V |
| Weight | 160 g |
| Weight | 0.35 lb |
KTPS36 Series
| Part | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Input Type | Form | Approval Agency | Power (Watts) | Output Connector [diameter] | Output Connector [x] | Output Connector | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Applications | Input Connector | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Cord Length | Cord Length | Region Utilized | Polarization | Voltage - Output | Standard Number | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Volgen + Furuno | 2.4 A | 40 °C | 0 °C | Fixed Blade | Wall Mount (Class II) | cUL UL | 36 W | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 34 mm | 72 mm | 2.83 " | 2.05 in | 1.34 in | 52 mm | ITE (Commercial) | NEMA 1-15P | Level VI | 240 VAC | 100 VAC | 1.5 m | 59 in | North America | Positive Center | 15 VDC | |||
Volgen + Furuno | 5 A | 40 °C | 0 °C | Fixed Blade | Wall Mount (Class II) | IEC | 25 W | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 34 mm | 72 mm | 2.83 " | 2.05 in | 1.34 in | 52 mm | ITE (Commercial) | NEMA 1-15P | Level VI | 240 VAC | 100 VAC | 1.5 m | 59 in | North America | Positive Center | 5 V | 62368-1 | ||
Volgen + Furuno | 2.4 A | 40 °C | 0 °C | Cord | Desktop (Class II) | CB CE cUL GS PSE UL | 36 W | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 50 mm | 100 mm | 3.94 in | 1.3 " | 1.97 " | 33 mm | ITE (Commercial) | IEC 320-C6 | Level VI | 240 VAC | 100 VAC | 1.5 m | 59 in | International | Positive Center | 15 VDC | |||
Volgen + Furuno | 4 A | 40 °C | 0 °C | Cord | Desktop (Class I) | IEC | 36 W | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 53 mm | 115 mm | 4.53 " | 1.5 " | 2.09 " | 38 mm | ITE (Commercial) | IEC 320-C6 | Level VI | 240 VAC | 100 VAC | 1.5 m | 59 in | International | Positive Center | 9 V | 62368-1 | ||
Volgen + Furuno | 750 mA | 40 °C | 0 °C | Multi-Blade (Included) | Wall Mount (Class II) | CB CE cUL GS PSE RCM UL | 36 W | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 35 mm | 79 mm | 3.11 in | 2.6 in | 1.38 " | 66 mm | ITE (Commercial) | Multi-Blade (Included) | Level VI | 240 VAC | 100 VAC | 1 m | 39.4 " | International | Positive Center | 48 V | |||
Volgen + Furuno | 3.34 A | 40 °C | 0 °C | Cord | Desktop (Class II) | IEC | 30 W | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 50 mm | 100 mm | 3.94 in | 1.3 " | 1.97 " | 33 mm | ITE (Commercial) | IEC 320-C6 | Level VI | 240 VAC | 100 VAC | 1.5 m | 59 in | International | Positive Center | 9 V | 62368-1 | ||
Volgen + Furuno | 3 A | 40 °C | 0 °C | Fixed Blade Multi-Blade | Wall Mount (Class II) | CB CE cUL GS PSE RCM UL | 36 W | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 35 mm | 79 mm | 3.11 in | 2.6 in | 1.38 " | 66 mm | ITE (Commercial) | NEMA 1-15P | Level VI | 240 VAC | 100 VAC | 1 m | 39.4 " | International | Positive Center | 12 V | 160 g | 0.35 lb | |
Volgen + Furuno | 3 A | 40 °C | 0 °C | Multi-Blade (Included) | Wall Mount (Class II) | IEC | 36 W | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 35 mm | 79 mm | 3.11 in | 2.6 in | 1.38 " | 66 mm | ITE (Commercial) | Multi-Blade (Included) | Level VI | 240 VAC | 100 VAC | 1 m | 39.4 " | International | Positive Center | 12 V | 62368-1 | ||
Volgen + Furuno | 5 A | 40 °C | 0 °C | Multi-Blade (Included) | Wall Mount (Class II) | IEC | 25 W | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 35 mm | 79 mm | 3.11 in | 2.6 in | 1.38 " | 66 mm | ITE (Commercial) | Multi-Blade (Included) | Level VI | 240 VAC | 100 VAC | 1 m | 39.4 " | International | Positive Center | 5 V | 62368-1 | ||
Volgen + Furuno | 1.5 A | 40 °C | 0 °C | Multi-Blade (Included) | Wall Mount (Class II) | IEC | 36 W | 2.1 mm 5.5 mm | 9.5 mm | Barrel Plug | 35 mm | 79 mm | 3.11 in | 2.6 in | 1.38 " | 66 mm | ITE (Commercial) | Multi-Blade (Included) | Level VI | 240 VAC | 100 VAC | 1 m | 39.4 " | International | Positive Center | 24 V | 62368-1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 500 | $ 12.13 | |
Description
General part information
KTPS36 Series
12V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade, Multi-Blade (Sold Separately) Input
