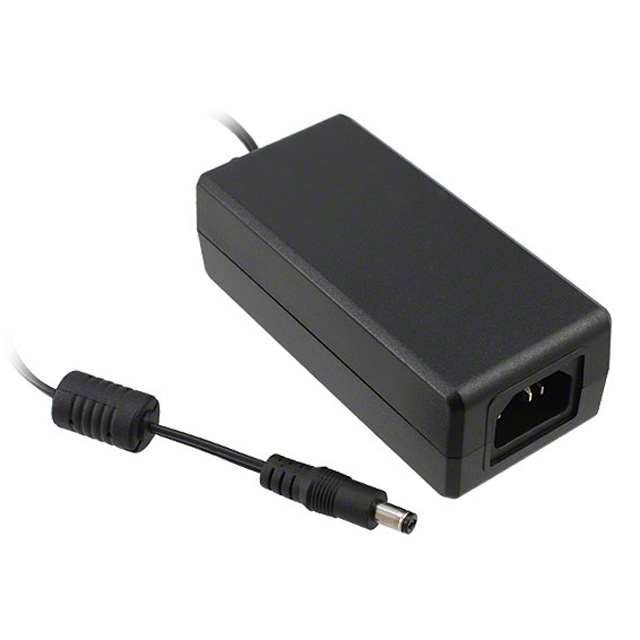

KTPS36-0940DT-3P-VI-C-P1

Active

Volgen + Furuno

AC/DC DESKTOP ADAPTER 9V 36W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KTPS36-0940DT-3P-VI-C-P1

Active

Volgen + Furuno

AC/DC DESKTOP ADAPTER 9V 36W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KTPS36-0940DT-3P-VI-C-P1

Applications	ITE (Commercial)
Approval Agency	IEC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	4 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C6
Input Type	Cord
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	4.53 "
Size / Dimension [x]	115 mm
Size / Dimension [y]	2.09 "
Size / Dimension [y]	53 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Standard Number	62368-1
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	9 V

KTPS36 Series

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Input Type	Form	Approval Agency	Power (Watts)	Output Connector [diameter]	Output Connector [x]	Output Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Input Connector	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Region Utilized	Polarization	Voltage - Output	Standard Number	Weight	Weight
Volgen + Furuno KTPS36-150240WA-VI-P1	2.4 A	40 °C	Fixed Blade	Wall Mount (Class II)	cUL UL	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	ITE (Commercial)	NEMA 1-15P	Level VI	240 VAC	100 VAC	1.5 m	59 in	North America	Positive Center	15 VDC
Volgen + Furuno KTPS36-050500WA-VI-P1	5 A	40 °C	Fixed Blade	Wall Mount (Class II)	IEC	25 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	ITE (Commercial)	NEMA 1-15P	Level VI	240 VAC	100 VAC	1.5 m	59 in	North America	Positive Center	5 V	62368-1
Volgen + Furuno KTPS36-150240DT-2P-VI-P12	2.4 A	40 °C	Cord	Desktop (Class II)	CB CE cUL GS PSE UL	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	50 mm	100 mm	3.94 in	1.3 "	1.97 "	33 mm	ITE (Commercial)	IEC 320-C6	Level VI	240 VAC	100 VAC	1.5 m	59 in	International	Positive Center	15 VDC
Volgen + Furuno KTPS36-0940DT-3P-VI-C-P1	4 A	40 °C	Cord	Desktop (Class I)	IEC	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	53 mm	115 mm	4.53 "	1.5 "	2.09 "	38 mm	ITE (Commercial)	IEC 320-C6	Level VI	240 VAC	100 VAC	1.5 m	59 in	International	Positive Center	9 V	62368-1
Volgen + Furuno KTPS36-480075MP-VI-P1	750 mA	40 °C	Multi-Blade (Included)	Wall Mount (Class II)	CB CE cUL GS PSE RCM UL	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	ITE (Commercial)	Multi-Blade (Included)	Level VI	240 VAC	100 VAC	1 m	39.4 "	International	Positive Center	48 V
Volgen + Furuno KTPS36-090334DT-2P-VI-P1	3.34 A	40 °C	Cord	Desktop (Class II)	IEC	30 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	50 mm	100 mm	3.94 in	1.3 "	1.97 "	33 mm	ITE (Commercial)	IEC 320-C6	Level VI	240 VAC	100 VAC	1.5 m	59 in	International	Positive Center	9 V	62368-1
Volgen + Furuno KTPS36-120300MP-VI-P2-NA	3 A	40 °C	Fixed Blade Multi-Blade	Wall Mount (Class II)	CB CE cUL GS PSE RCM UL	36 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	ITE (Commercial)	NEMA 1-15P	Level VI	240 VAC	100 VAC	1 m	39.4 "	International	Positive Center	12 V		160 g	0.35 lb
Volgen + Furuno KTPS36-120300MP-VI-P1	3 A	40 °C	Multi-Blade (Included)	Wall Mount (Class II)	IEC	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	ITE (Commercial)	Multi-Blade (Included)	Level VI	240 VAC	100 VAC	1 m	39.4 "	International	Positive Center	12 V	62368-1
Volgen + Furuno KTPS36-050500MP-VI-P2R	5 A	40 °C	Multi-Blade (Included)	Wall Mount (Class II)	IEC	25 W	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	ITE (Commercial)	Multi-Blade (Included)	Level VI	240 VAC	100 VAC	1 m	39.4 "	International	Positive Center	5 V	62368-1
Volgen + Furuno KTPS36-240150MP-VI-P1	1.5 A	40 °C	Multi-Blade (Included)	Wall Mount (Class II)	IEC	36 W	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	35 mm	79 mm	3.11 in	2.6 in	1.38 "	66 mm	ITE (Commercial)	Multi-Blade (Included)	Level VI	240 VAC	100 VAC	1 m	39.4 "	International	Positive Center	24 V	62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.11
		5	$ 20.78
		10	$ 20.46
		25	$ 19.48
		50	$ 18.83
		100	$ 17.53
		250	$ 17.27

Description

General part information

KTPS36 Series

9V 36 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Documents

Technical documentation and resources
