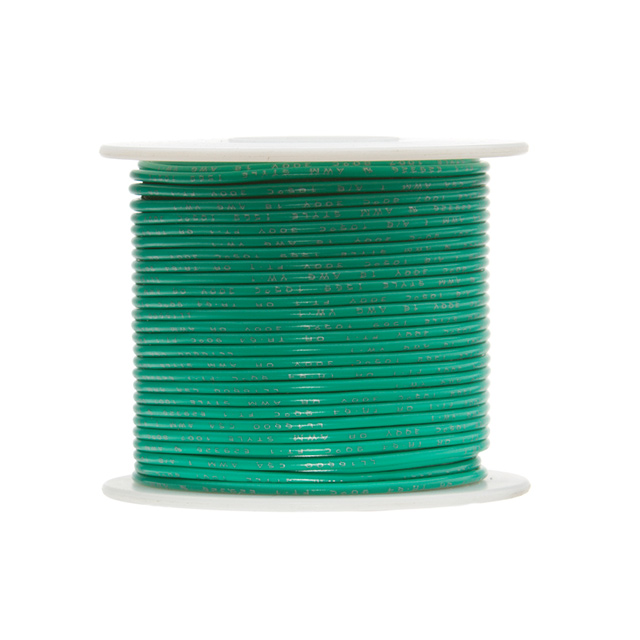

12GPTSTRGRE100
ActiveRemington Industries
HOOK-UP STRND 12AWG 60V GRN 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12GPTSTRGRE100
ActiveRemington Industries
HOOK-UP STRND 12AWG 60V GRN 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 12GPTSTRGRE100 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 25 |
| Features | Chemical Resistant, Oil Resistant, Abrasion Resistant, Solvent Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.142 in |
| Jacket (Insulation) Diameter [diameter] | 3.61 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Green |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Voltage | 60 V |
| Wire Gauge | 12 AWG |
12GPTSTR Series
| Part | Jacket (Insulation) Material | Jacket Color | Voltage | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Cable Type | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Remington Industries | Poly-Vinyl Chloride (PVC) | Black | 60 V | 12 AWG | 85 °C | -40 °C | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 19 | 25 | 0.142 in | 3.61 mm | 3000 " | 76.2 m | Hook-Up | Copper Bare | ||
Remington Industries | Poly-Vinyl Chloride (PVC) | 60 V | 12 AWG | 85 °C | -40 °C | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 19 | 25 | 0.142 in | 3.61 mm | Hook-Up | Copper Bare | 30.5 m | 100 ft | |||
Remington Industries | Poly-Vinyl Chloride (PVC) | Blue | 60 V | 12 AWG | 85 °C | -40 °C | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 19 | 25 | 0.142 in | 3.61 mm | Hook-Up | Copper Bare | 30.5 m | 100 ft | ||
Remington Industries | Poly-Vinyl Chloride (PVC) | Red | 60 V | 12 AWG | 85 °C | -40 °C | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 19 | 25 | 0.142 in | 3.61 mm | 1000 ft | 304.8 m | Hook-Up | Copper Bare | ||
Remington Industries | Poly-Vinyl Chloride (PVC) | Blue | 60 V | 12 AWG | 85 °C | -40 °C | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 19 | 25 | 0.142 in | 3.61 mm | 1000 ft | 304.8 m | Hook-Up | Copper Bare | ||
Remington Industries | Poly-Vinyl Chloride (PVC) | Green | 60 V | 12 AWG | 85 °C | -40 °C | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 19 | 25 | 0.142 in | 3.61 mm | Hook-Up | Copper Bare | 152.4 m | 500 ' | ||
Remington Industries | Poly-Vinyl Chloride (PVC) | Green | 60 V | 12 AWG | 85 °C | -40 °C | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 19 | 25 | 0.142 in | 3.61 mm | Hook-Up | Copper Bare | 30.5 m | 100 ft | ||
Remington Industries | Poly-Vinyl Chloride (PVC) | Green | 60 V | 12 AWG | 85 °C | -40 °C | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 19 | 25 | 0.142 in | 3.61 mm | 3000 " | 76.2 m | Hook-Up | Copper Bare | ||
Remington Industries | Poly-Vinyl Chloride (PVC) | 60 V | 12 AWG | 85 °C | -40 °C | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 19 | 25 | 0.142 in | 3.61 mm | Hook-Up | Copper Bare | 152.4 m | 500 ' | |||
Remington Industries | Poly-Vinyl Chloride (PVC) | Green | 60 V | 12 AWG | 85 °C | -40 °C | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 19 | 25 | 0.142 in | 3.61 mm | 1000 ft | 304.8 m | Hook-Up | Copper Bare |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.95 | |
Description
General part information
12GPTSTR Series
12 AWG Hook-Up Wire 19/25 Green 60V 100.0' (30.5m)
