12GPTSTRGRE500

Active

Remington Industries

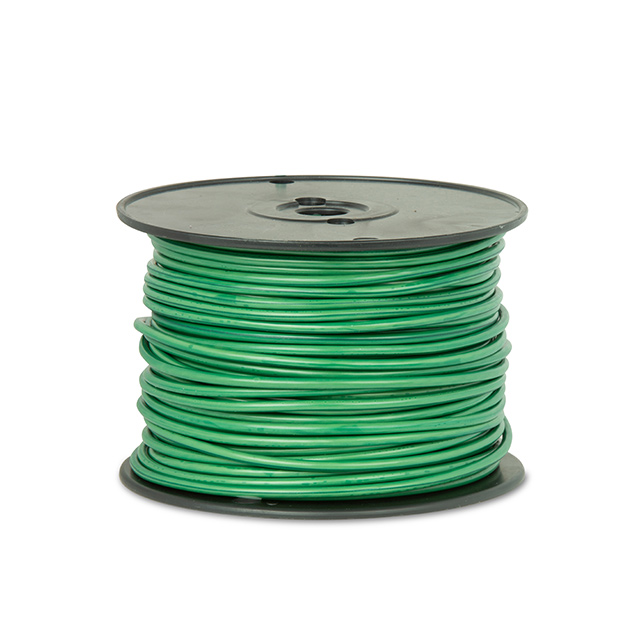

HOOK-UP STRND 12AWG 60V GRN 500'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

12GPTSTRGRE500

Active

Remington Industries

HOOK-UP STRND 12AWG 60V GRN 500'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	12GPTSTRGRE500

Cable Type	Hook-Up
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	25
Features	Chemical Resistant, Oil Resistant, Abrasion Resistant, Solvent Resistant
Jacket (Insulation) Diameter [diameter]	0.142 in
Jacket (Insulation) Diameter [diameter]	3.61 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Green
Length [x]	500 '
Length [x]	152.4 m
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Voltage	60 V
Wire Gauge	12 AWG

12GPTSTR Series

Part	Jacket (Insulation) Material	Jacket Color	Voltage	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Cable Type	Conductor Material	Length [x]	Length [x]
Remington Industries 12GPTSTRBLA250	Poly-Vinyl Chloride (PVC)	Black	60 V	12 AWG	85 °C	-40 °C	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	19	25	0.142 in	3.61 mm	3000 "	76.2 m	Hook-Up	Copper Bare
Remington Industries 12GPTSTRWHI100	Poly-Vinyl Chloride (PVC)		60 V	12 AWG	85 °C	-40 °C	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	19	25	0.142 in	3.61 mm			Hook-Up	Copper Bare	30.5 m	100 ft
Remington Industries 12GPTSTRBLU100	Poly-Vinyl Chloride (PVC)	Blue	60 V	12 AWG	85 °C	-40 °C	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	19	25	0.142 in	3.61 mm			Hook-Up	Copper Bare	30.5 m	100 ft
Remington Industries 12GPTSTRRED1000	Poly-Vinyl Chloride (PVC)	Red	60 V	12 AWG	85 °C	-40 °C	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	19	25	0.142 in	3.61 mm	1000 ft	304.8 m	Hook-Up	Copper Bare
Remington Industries 12GPTSTRBLU1000	Poly-Vinyl Chloride (PVC)	Blue	60 V	12 AWG	85 °C	-40 °C	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	19	25	0.142 in	3.61 mm	1000 ft	304.8 m	Hook-Up	Copper Bare
Remington Industries 12GPTSTRGRE500	Poly-Vinyl Chloride (PVC)	Green	60 V	12 AWG	85 °C	-40 °C	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	19	25	0.142 in	3.61 mm			Hook-Up	Copper Bare	152.4 m	500 '
Remington Industries 12GPTSTRGRE100	Poly-Vinyl Chloride (PVC)	Green	60 V	12 AWG	85 °C	-40 °C	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	19	25	0.142 in	3.61 mm			Hook-Up	Copper Bare	30.5 m	100 ft
Remington Industries 12GPTSTRGRE250	Poly-Vinyl Chloride (PVC)	Green	60 V	12 AWG	85 °C	-40 °C	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	19	25	0.142 in	3.61 mm	3000 "	76.2 m	Hook-Up	Copper Bare
Remington Industries 12GPTSTRWHI500	Poly-Vinyl Chloride (PVC)		60 V	12 AWG	85 °C	-40 °C	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	19	25	0.142 in	3.61 mm			Hook-Up	Copper Bare	152.4 m	500 '
Remington Industries 12GPTSTRGRE1000	Poly-Vinyl Chloride (PVC)	Green	60 V	12 AWG	85 °C	-40 °C	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	19	25	0.142 in	3.61 mm	1000 ft	304.8 m	Hook-Up	Copper Bare

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 163.70

Description

General part information

12GPTSTR Series

12 AWG Hook-Up Wire 19/25 Green 60V 500.0' (152.4m)

Documents

Technical documentation and resources
