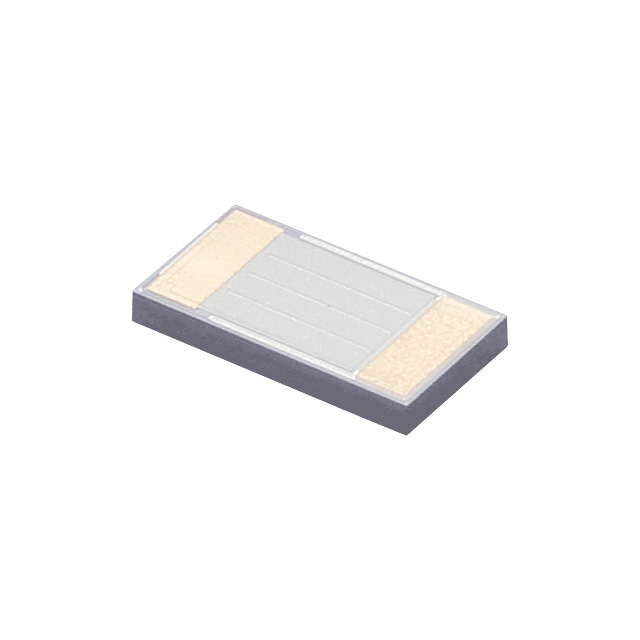

935151424610-T3N
ActiveMurata Power Solutions Inc.
CAP SILICON 0.1UF 15% 11V 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
935151424610-T3N
ActiveMurata Power Solutions Inc.
CAP SILICON 0.1UF 15% 11V 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 935151424610-T3N |
|---|---|
| Applications | High Stability |
| Capacitance | 100000 pF |
| ESL (Equivalent Series Inductance) | 100 pH |
| ESR (Equivalent Series Resistance) | 300 mOhms |
| Features | High Reliability, Low Profile |
| Height [z] | 0.017 in |
| Height [z] | 0.44 mm |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension [x] | 1.2 mm |
| Size / Dimension [x] | 0.047 in |
| Size / Dimension [y] | 0.028 " |
| Size / Dimension [y] | 0.7 mm |
| Tolerance | 15 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 14.17 | |
| 10 | $ 13.11 | |||
| 50 | $ 11.34 | |||
| 100 | $ 10.20 | |||
| 500 | $ 9.42 | |||
| Digi-Reel® | 1 | $ 14.17 | ||
| 10 | $ 13.11 | |||
| 50 | $ 11.34 | |||
| 100 | $ 10.20 | |||
| 500 | $ 9.42 | |||
| Tape & Reel (TR) | 1000 | $ 8.86 | ||
Description
General part information
935151 Series
0.1 µF Silicon Capacitor 11 V 0402 (1005 Metric)
