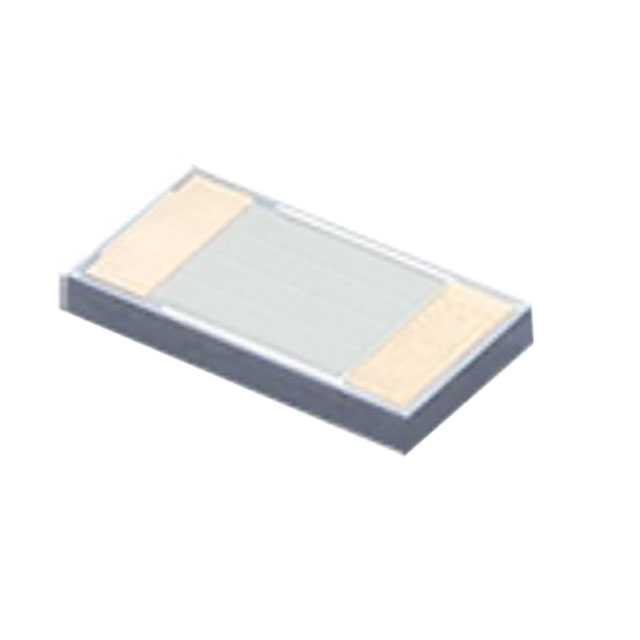

935151723510-T3N
ActiveMurata Power Solutions Inc.
CAP SILICON 10000PF 15% 30V 0201
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
935151723510-T3N
ActiveMurata Power Solutions Inc.
CAP SILICON 10000PF 15% 30V 0201
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 935151723510-T3N |
|---|---|
| Applications | High Stability |
| Capacitance | 10000 pF |
| ESL (Equivalent Series Inductance) | 100 pH |
| ESR (Equivalent Series Resistance) | 300 mOhms |
| Features | High Reliability, Low Profile |
| Height [z] | 0.017 in |
| Height [z] | 0.44 mm |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Size / Dimension [x] | 0.031 in |
| Size / Dimension [x] | 0.8 mm |
| Size / Dimension [y] | 0.6 mm |
| Size / Dimension [y] | 0.024 " |
| Tolerance | 15 % |
| Voltage - Breakdown | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.93 | |
| 10 | $ 6.87 | |||
| 50 | $ 6.16 | |||
| 100 | $ 5.35 | |||
| 500 | $ 4.84 | |||
| Digi-Reel® | 1 | $ 7.93 | ||
| 10 | $ 6.87 | |||
| 50 | $ 6.16 | |||
| 100 | $ 5.35 | |||
| 500 | $ 4.84 | |||
| Tape & Reel (TR) | 1000 | $ 4.49 | ||
| 2000 | $ 4.40 | |||
Description
General part information
935151 Series
10000 pF Silicon Capacitor 30 V 0201 (0603 Metric)
Documents
Technical documentation and resources
