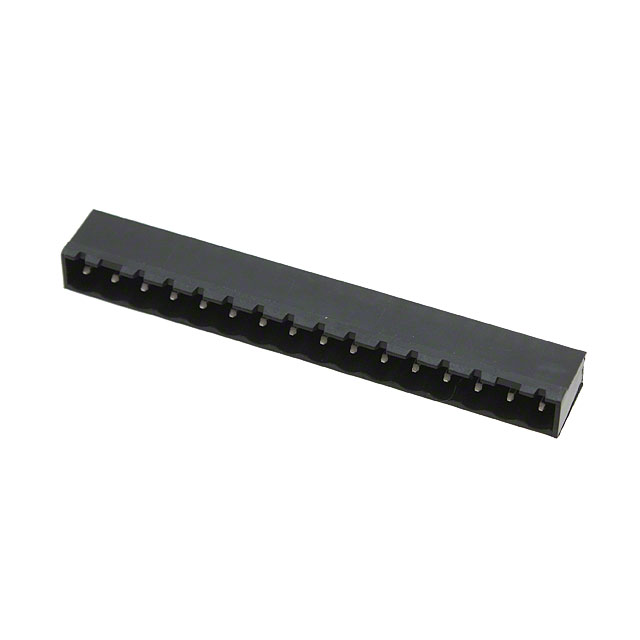

ELFH16250

Active

AMPHENOL PCD

TERM BLOCK HDR 16POS VERT 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK HDR 16POS VERT 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH16250

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Header Orientation	Vertical
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	8.1 mm
Insulation Height	0.319 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	16
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Color	Pitch [x]	Pitch [x]	Contact Material	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Housing Material	Contact Mating Finish	Positions Per Level	Termination Style	Insulation Height	Insulation Height [z]	Number of Positions	Contact Tail Length	Contact Tail Length	Voltage - UL	Header Orientation	Material Flammability Rating	Insulation Height	Operating Temperature	Features
AMPHENOL PCD ELFH16250E
AMPHENOL PCD ELFH16280E
AMPHENOL PCD ELFH16210E
AMPHENOL PCD ELFH16280	Black	0.2 in	5.08 mm	Brass	Through Hole	Header Male Pins Shrouded (4 Side)	-40 °C	105 ░C	1	Polyamide (PA46) Nylon 4/6	Tin	16	Solder	12.07 mm	0.475 in	16	3.94 mm	0.155 in	300 V	Vertical	UL94 V-0
AMPHENOL PCD ELFH1629G
AMPHENOL PCD ELFH16250J	Black	0.2 in	5.08 mm	Copper Alloy	Through Hole	Header Male Pins Shrouded (4 Side)			1	Polybutylene Terephthalate (PBT)	Tin-Lead	16	Solder	12.7 mm		16	3.94 mm	0.155 in	300 V	Vertical	UL94 V-0	0.5 in	105 C	Ejectors
AMPHENOL PCD ELFH1622G	Green	0.2 in	5.08 mm	Brass	Through Hole	Header Male Pins Shrouded (2 Side)	-40 °C	105 ░C	1	Polybutylene Terephthalate (PBT)	Tin-Lead	16	Solder	8.1 mm		16	3.94 mm	0.155 in	300 V	90° Right Angle	UL94 V-0	0.319 in
AMPHENOL PCD ELFH16250	Black	0.2 in	5.08 mm	Brass	Through Hole	Header Male Pins Shrouded (4 Side)	-40 °C	105 ░C	1	Polybutylene Terephthalate (PBT)	Tin	16	Solder	8.1 mm		16			300 V	Vertical	UL94 V-0	0.319 in
AMPHENOL PCD ELFH1625G
AMPHENOL PCD ELFH1623G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.66

General part information

16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
