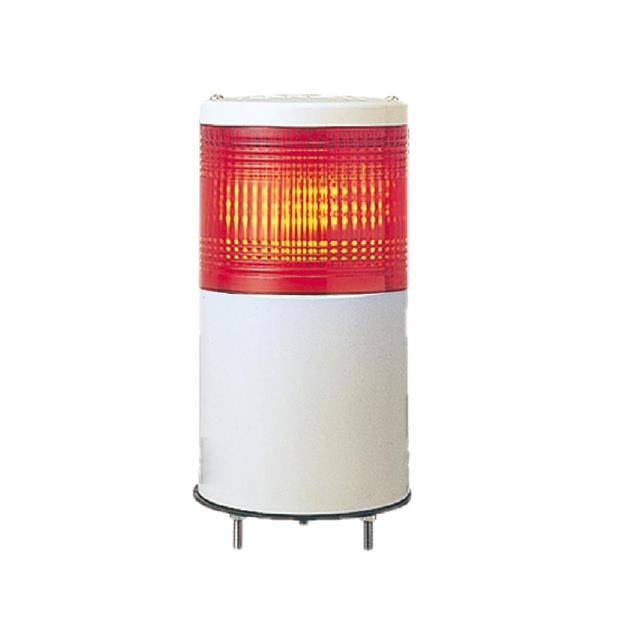

XVC4B1K

Active

SQUARE D BY SCHNEIDER ELECTRIC

40MM TOWER R BASE MOUNT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

40MM TOWER R BASE MOUNT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	XVC4B1K

Function - Lighting	Steady
Ingress Protection	IP54 - Dust Protected, Water Resistant
Light Color	Red
Number of Stacks	1
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply	24 VAC
Weight	99.79 g
Weight	0.22 lb

Part	Termination Style	Ingress Protection	Voltage - Supply	Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Function - Lighting	Light Color	Number of Stacks	Weight	Weight
SQUARE D BY SCHNEIDER ELECTRIC XVC4B25S	Wire Leads	IP23	24 VAC	Complete Unit	-10 °C	50 °C	Flashing Steady	Orange Red	2
SQUARE D BY SCHNEIDER ELECTRIC XVC4B2K	Wire Leads	IP54 - Dust Protected Water Resistant	24 VAC	Complete Unit	-10 °C	50 °C	Steady	Orange Red	2	0.26 lb	117.93 g
SQUARE D BY SCHNEIDER ELECTRIC XVC4B45S	Wire Leads	IP23	24 VAC	Complete Unit	-10 °C	50 °C	Flashing Steady	Blue Green Orange Red	4
SQUARE D BY SCHNEIDER ELECTRIC XVC4B1K	Wire Leads	IP54 - Dust Protected Water Resistant	24 VAC	Complete Unit	-10 °C	50 °C	Steady	Red	1	0.22 lb	99.79 g
SQUARE D BY SCHNEIDER ELECTRIC XVC4B5	Wire Leads	IP23	24 VAC	Complete Unit	-10 °C	50 °C	Steady	Blue Clear Green Orange Red	5	1.3 lbs	589.7 g
SQUARE D BY SCHNEIDER ELECTRIC XVC4B55S	Wire Leads	IP23	24 VAC	Complete Unit	-10 °C	50 °C	Flashing Steady	Blue Green Orange Red White	5
SQUARE D BY SCHNEIDER ELECTRIC XVC4B15S	Wire Leads	IP23	24 VAC	Complete Unit	-10 °C	50 °C	Flashing Steady	Red	1	1.3 lbs	589.7 g
SQUARE D BY SCHNEIDER ELECTRIC XVC4B5K	Wire Leads	IP54 - Dust Protected Water Resistant	24 VAC	Complete Unit	-10 °C	50 °C	Steady	Blue Green Orange Red White	5	0.4 lb	181.44 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stack Light Complete Unit Red LED Wire Leads
