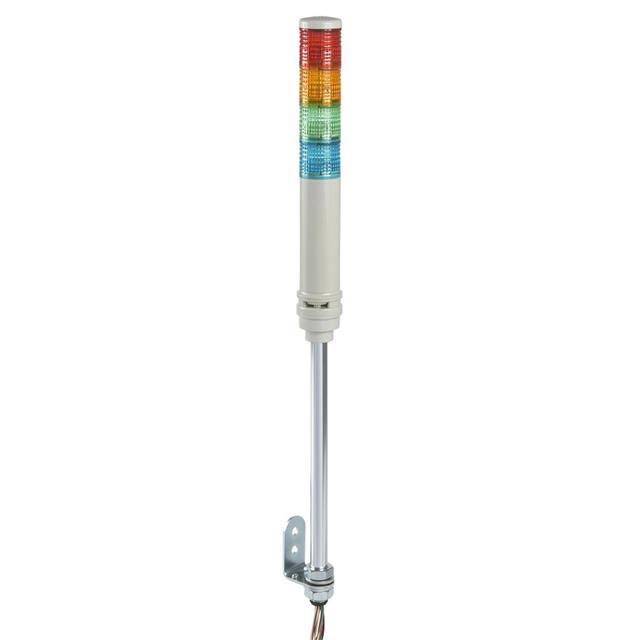

XVC4B45S

Active

SQUARE D BY SCHNEIDER ELECTRIC

40MM TOWER ROGB POLE BUZZER FLASH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

40MM TOWER ROGB POLE BUZZER FLASH ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	XVC4B45S

Function - Lighting	Steady, Flashing
Ingress Protection	IP23
Light Color	Orange, Green, Blue, Red
Number of Stacks	4
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply	24 VAC

Part	Termination Style	Ingress Protection	Voltage - Supply	Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Function - Lighting	Light Color	Number of Stacks	Weight	Weight
SQUARE D BY SCHNEIDER ELECTRIC XVC4B25S	Wire Leads	IP23	24 VAC	Complete Unit	-10 °C	50 °C	Flashing Steady	Orange Red	2
SQUARE D BY SCHNEIDER ELECTRIC XVC4B2K	Wire Leads	IP54 - Dust Protected Water Resistant	24 VAC	Complete Unit	-10 °C	50 °C	Steady	Orange Red	2	0.26 lb	117.93 g
SQUARE D BY SCHNEIDER ELECTRIC XVC4B45S	Wire Leads	IP23	24 VAC	Complete Unit	-10 °C	50 °C	Flashing Steady	Blue Green Orange Red	4
SQUARE D BY SCHNEIDER ELECTRIC XVC4B1K	Wire Leads	IP54 - Dust Protected Water Resistant	24 VAC	Complete Unit	-10 °C	50 °C	Steady	Red	1	0.22 lb	99.79 g
SQUARE D BY SCHNEIDER ELECTRIC XVC4B5	Wire Leads	IP23	24 VAC	Complete Unit	-10 °C	50 °C	Steady	Blue Clear Green Orange Red	5	1.3 lbs	589.7 g
SQUARE D BY SCHNEIDER ELECTRIC XVC4B55S	Wire Leads	IP23	24 VAC	Complete Unit	-10 °C	50 °C	Flashing Steady	Blue Green Orange Red White	5
SQUARE D BY SCHNEIDER ELECTRIC XVC4B15S	Wire Leads	IP23	24 VAC	Complete Unit	-10 °C	50 °C	Flashing Steady	Red	1	1.3 lbs	589.7 g
SQUARE D BY SCHNEIDER ELECTRIC XVC4B5K	Wire Leads	IP54 - Dust Protected Water Resistant	24 VAC	Complete Unit	-10 °C	50 °C	Steady	Blue Green Orange Red White	5	0.4 lb	181.44 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stack Light Complete Unit Blue, Green, Orange, Red LED Wire Leads
