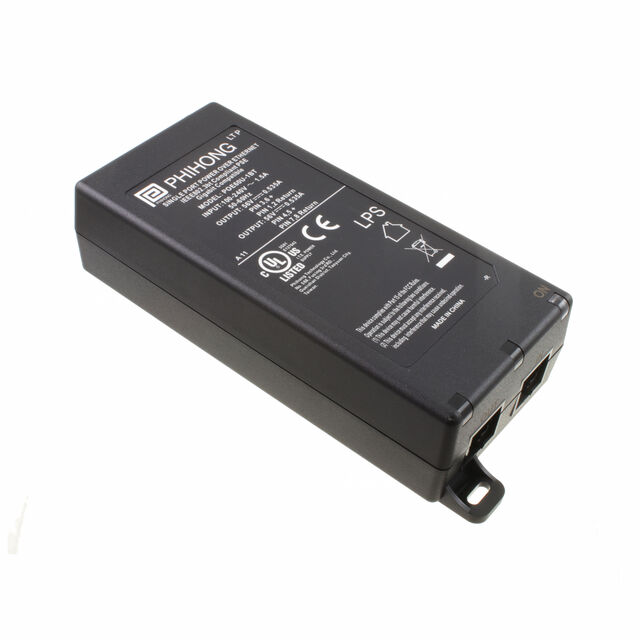

POE60U-1BT

Obsolete

Phihong USA

IEEE802.3BT - POE INJECTOR DESKT

Search across all available documentation for this part.

Obsolete

Phihong USA

IEEE802.3BT - POE INJECTOR DESKT

Technical Specifications

Parameters and characteristics for this part

Part	Number of Ports	Voltage - Output	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output	Features	Standard Number	Compliance	Type	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Power (Watts) - Per Port	Efficiency	Output Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Input Connector	Efficiency	Data Rate
Phihong USA POE60U-1BT-X-R	1	56 V	-10 °C	40 °C	Desktop	1.07 A	OCP OVP SCP	60950-1	IEEE802.3bt	Midspan Injector	90 VAC	264 VAC	cULus IEC	60 W	Level VI	RJ45 (Data Power)	65 mm	5.51 "	2.56 "	1.42 in	36 mm	140 mm	IEC 320-C14 (Power) RJ45 (Data)
Phihong USA POE60U-1BTE-R	1	56 V	-10 °C	40 °C	Desktop	1.07 A	OCP OVP SCP	60950-1	IEEE802.3bt	Midspan Injector	90 VAC	264 VAC	cULus IEC	60 W	Level VI	RJ45 (Data Power)	65 mm	5.51 "	2.56 "	1.42 in	36 mm	140 mm	IEC 320-C14 (Power) RJ45 (Data)
Phihong USA POE60U-560E-R	1	56 V	-10 °C	60 °C	Desktop	1.07 A	OCP OVP SCP	60950-1		Midspan Injector	90 VAC	264 VAC	cULus IEC	60 W		RJ45 (Data Power)	65 mm	5.51 "	2.56 "	1.42 in	36 mm	140 mm	IEC 320-C14 (Power) RJ45 (Data)	80 %	10 Mbps 100 Mbps 1000 Mbps
Phihong USA POE60U-1BT	1	56 V	-10 °C	40 °C	Desktop	1.07 A	OCP OVP SCP		IEEE802.3bt	Midspan Injector	90 VAC	264 VAC	CE cULus	60 W		RJ45 (Data Power)	2.56 in 65 mm				1.42 " 36 mm	6.43 in 163.2 mm	IEC 320-C14 (Power) RJ45 (Data)	75 %
Phihong USA POE60U-560-X-R	1	56 V	-10 °C	60 °C	Desktop	1.07 A	OCP OVP SCP			Midspan Injector	90 VAC	264 VAC	CE cULus	60 W	Level VI	RJ45 (Data Power)	65 mm	5.51 "	2.56 "	1.42 in	36 mm	140 mm	IEC 320-C14 (Power) RJ45 (Data)		10 Gbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

56V Power Over Ethernet (POE) 1 Port Midspan Injector Data Rate

Technical documentation and resources

No documents available
