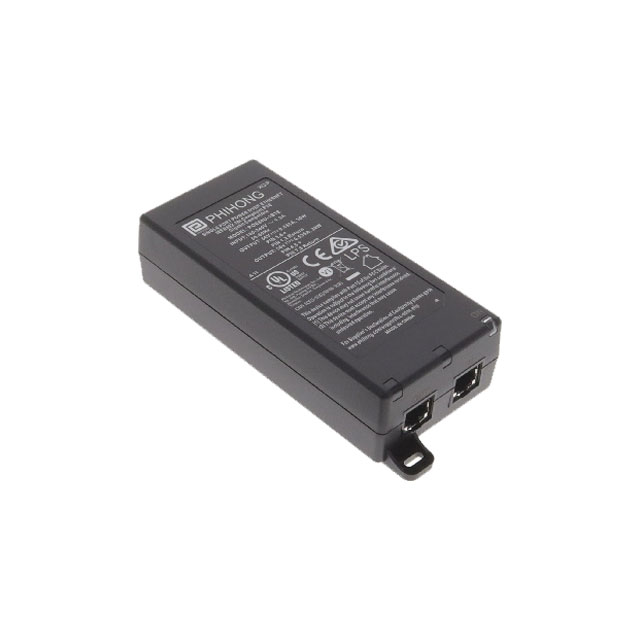

POE60U-1BTE-R
ActivePhihong USA
IEEE802.3BT - POE DESKTOP C14 GI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
POE60U-1BTE-R
ActivePhihong USA
IEEE802.3BT - POE DESKTOP C14 GI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | POE60U-1BTE-R |
|---|---|
| Approval Agency | IEC, cULus |
| Compliance | IEEE802.3bt |
| Current - Output | 1.07 A |
| Efficiency | Level VI |
| Features | SCP, OCP, OVP |
| Input Connector | IEC 320-C14 (Power), RJ45 (Data) |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 60 W |
| Size / Dimension [x] | 5.51 " |
| Size / Dimension [x] | 140 mm |
| Size / Dimension [y] | 65 mm |
| Size / Dimension [y] | 2.56 " |
| Size / Dimension [z] | 1.42 in |
| Size / Dimension [z] | 36 mm |
| Standard Number | 60950-1 |
| Type | Midspan Injector |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 56 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 58.95 | |
| 10 | $ 55.27 | |||
| 25 | $ 52.02 | |||
| 50 | $ 50.53 | |||
| 100 | $ 46.48 | |||
Description
General part information
POE60U Series
56V Power Over Ethernet (POE) 1 Port Midspan Injector Data Rate
