W25Q20EWBYIG TR

Active

Winbond Electronics

IC FLASH 2MBIT SPI/QUAD 8WLCSP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W25Q20EWBYIG TR

Active

Winbond Electronics

IC FLASH 2MBIT SPI/QUAD 8WLCSP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W25Q20EWBYIG TR

Clock Frequency	104 MHz
Memory Format	FLASH
Memory Interface	SPI - Quad I/O
Memory Organization [custom]	256 K
Memory Organization [custom]	8
Memory Size	2 Gbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

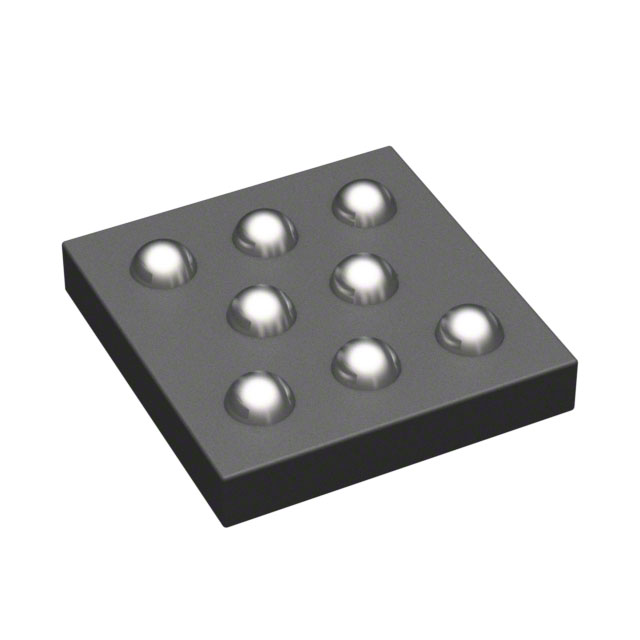

Package / Case	8-XFBGA, WLCSP
Supplier Device Package	8-WLCSP (1.4x1.34)
Technology	FLASH - NOR
Voltage - Supply [Max]	1.95 V
Voltage - Supply [Min]	1.65 V
Write Cycle Time - Word, Page [custom]	800 µs
Write Cycle Time - Word, Page [custom]	30 µs

W25Q20 Series

Part	Technology	Access Time	Memory Format	Memory Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Organization [custom]	Memory Organization [custom]	Clock Frequency	Memory Size	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Type	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Write Cycle Time - Word, Page	Package / Case	Package / Case [y]	Package / Case [x]
Winbond Electronics W25Q20EWNB02	FLASH - NOR	6 ns	FLASH	SPI - Quad I/O	1.95 V	1.65 V	256 K	8	104 MHz	2 Gbit	800 µs	30 µs	Non-Volatile
Winbond Electronics W25Q20EWSNIG	FLASH - NOR		FLASH	SPI - Quad I/O	1.95 V	1.65 V	256 K	8	104 MHz	2 Gbit			Non-Volatile	Surface Mount	8-SOIC	85 °C	-40 °C	800 µs	8-SOIC	3.9 mm	0.154 in
Winbond Electronics W25Q20EWUXAE	FLASH - NOR	6 ns	FLASH	SPI - Quad I/O	1.95 V	1.65 V	256 K	8	104 MHz	2 Gbit	800 µs	30 µs	Non-Volatile	Surface Mount	8-USON (2x3)	105 °C	-40 °C		8-UFDFN Exposed Pad
Winbond Electronics W25Q20EWNB03	FLASH - NOR	6 ns	FLASH	SPI - Quad I/O	1.95 V	1.65 V	256 K	8	104 MHz	2 Gbit	800 µs	30 µs	Non-Volatile
Winbond Electronics W25Q20EWSVIG TR	FLASH - NOR		FLASH	SPI - Quad I/O	1.95 V	1.65 V	256 K	8	104 MHz	2 Gbit			Non-Volatile	Surface Mount	8-VSOP	85 °C	-40 °C	800 µs	8-SOIC	3.9 mm	0.154 in
Winbond Electronics W25Q20CLSNIG TR	FLASH - NOR	8 ns	FLASH	SPI - Quad I/O	3.6 V	2.3 V	256 K	8	104 MHz	2 Gbit			Non-Volatile	Surface Mount	8-SOIC	85 °C	-40 °C	800 µs	8-SOIC	3.9 mm	0.154 in
Winbond Electronics W25Q20EWUXIE TR	FLASH - NOR		FLASH	SPI - Quad I/O	1.95 V	1.65 V	256 K	8	104 MHz	2 Gbit			Non-Volatile	Surface Mount	8-USON (2x3)	85 °C	-40 °C	800 µs	8-UFDFN Exposed Pad
Winbond Electronics W25Q20EWBYIG TR	FLASH - NOR		FLASH	SPI - Quad I/O	1.95 V	1.65 V	256 K	8	104 MHz	2 Gbit	800 µs	30 µs	Non-Volatile	Surface Mount	8-WLCSP (1.4x1.34)	85 °C	-40 °C		8-XFBGA WLCSP
Winbond Electronics W25Q20CLZPIG	FLASH - NOR		FLASH	SPI - Quad I/O	3.6 V	2.3 V	256 K	8	104 MHz	2 Gbit			Non-Volatile	Surface Mount	8-WSON (6x5)	85 °C	-40 °C	800 µs	8-WDFN Exposed Pad
Winbond Electronics W25Q20EWNB01	FLASH - NOR	6 ns	FLASH	SPI - Quad I/O	1.95 V	1.65 V	256 K	8	104 MHz	2 Gbit	800 µs	30 µs	Non-Volatile

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.49
		10	$ 0.48
		25	$ 0.45
		50	$ 0.45
		100	$ 0.40
		250	$ 0.39
		500	$ 0.38
		1000	$ 0.37
	Digi-Reel®	1	$ 0.49
		10	$ 0.48
		25	$ 0.45
		50	$ 0.45
		100	$ 0.40
		250	$ 0.39
		500	$ 0.38
		1000	$ 0.37
	Tape & Reel (TR)	3000	$ 0.26

Description

General part information

W25Q20 Series

FLASH - NOR Memory IC 2Mbit SPI - Quad I/O 104 MHz 8-WLCSP (1.4x1.34)
