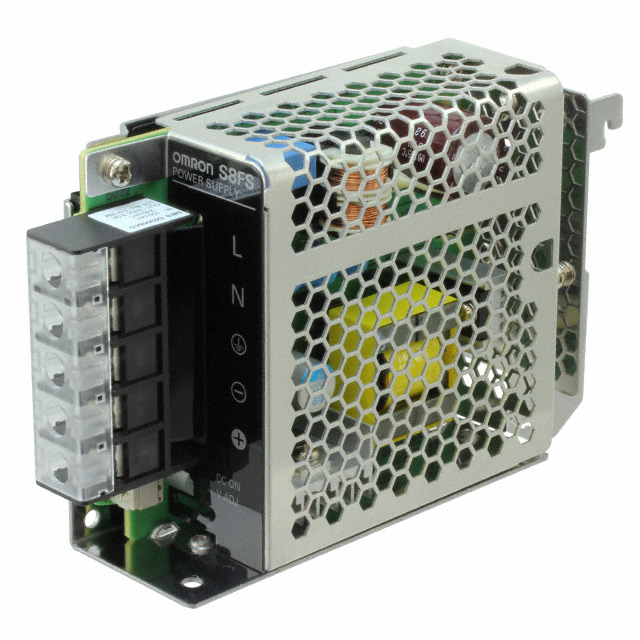

S8FS-G03005CD
ActiveOmron Electronics Inc-EMC Div
AC/DC DIN RAIL SUPPLY 5V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S8FS-G03005CD |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | cURus, TUV, UL, CE |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 81 % |
| Features | Adjustable Output, Universal Input |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 3.9 " |
| Size / Dimension [x] | 99 mm |
| Size / Dimension [y] | 36.2 mm |
| Size / Dimension [y] | 1.43 " |
| Size / Dimension [z] | 3.23 in |
| Size / Dimension [z] | 82 mm |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 78.67 | |
| 10 | $ 73.06 | |||
| 25 | $ 71.93 | |||
| 50 | $ 69.68 | |||
| 100 | $ 65.19 | |||
Description
General part information
S8FS-G030 Series
AC/DC DIN RAIL SUPPLY 5V 30W
