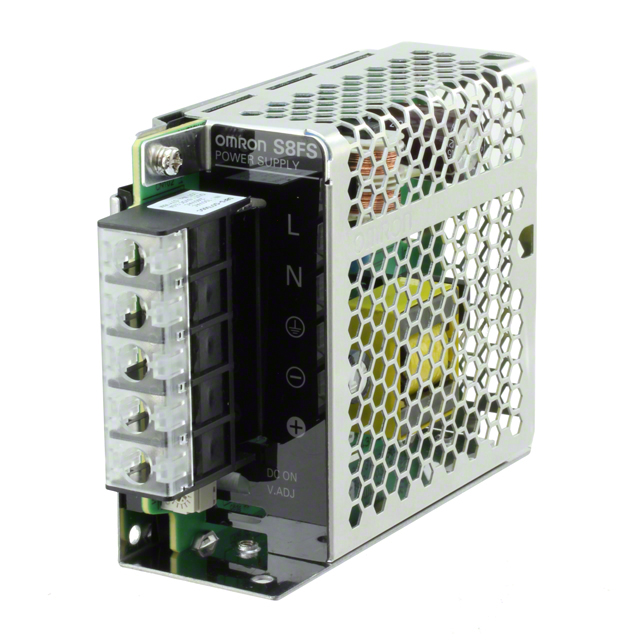

S8FS-G03024C

Active

Omron Electronics Inc-EMC Div

AC/DC CONVERTER 24V 30W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC CONVERTER 24V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	S8FS-G03024C

Applications	ITE (Commercial)
Approval Agency	cURus, TUV, UL, CE
Current - Output 1	1.5 A
Efficiency	89 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	30 W
Size / Dimension [x]	3.9 "
Size / Dimension [x]	99 mm
Size / Dimension [y]	82 mm
Size / Dimension [y]	3.23 "
Size / Dimension [z]	1.38 in
Size / Dimension [z]	35 mm
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Isolation	Type	Efficiency	Voltage - Output 1	Mounting Type	Applications	Features	Current - Output 1	Approval Agency	Input Type	Current - Output (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]
Omron Electronics Inc-EMC Div S8FS-G03005C	30 W	-20 °C	70 °C	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	1	3000 V	Enclosed	81 %	5 V	Chassis Mount	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	6 A	CE cURus TUV UL
Omron Electronics Inc-EMC Div S8FS-G03005CD	30 W	-20 °C	70 °C	3.23 in	82 mm	3.9 "	36.2 mm	1.43 "	99 mm	1	3000 V		81 %	5 V		ITE (Commercial)	Adjustable Output Universal Input		CE cURus TUV UL	AC	6 A	85 VAC	264 VAC
Omron Electronics Inc-EMC Div S8FS-G03024C	30 W	-20 °C	70 °C	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	1	3000 V	Enclosed	89 %	24 V	Chassis Mount	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	1.5 A	CE cURus TUV UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
